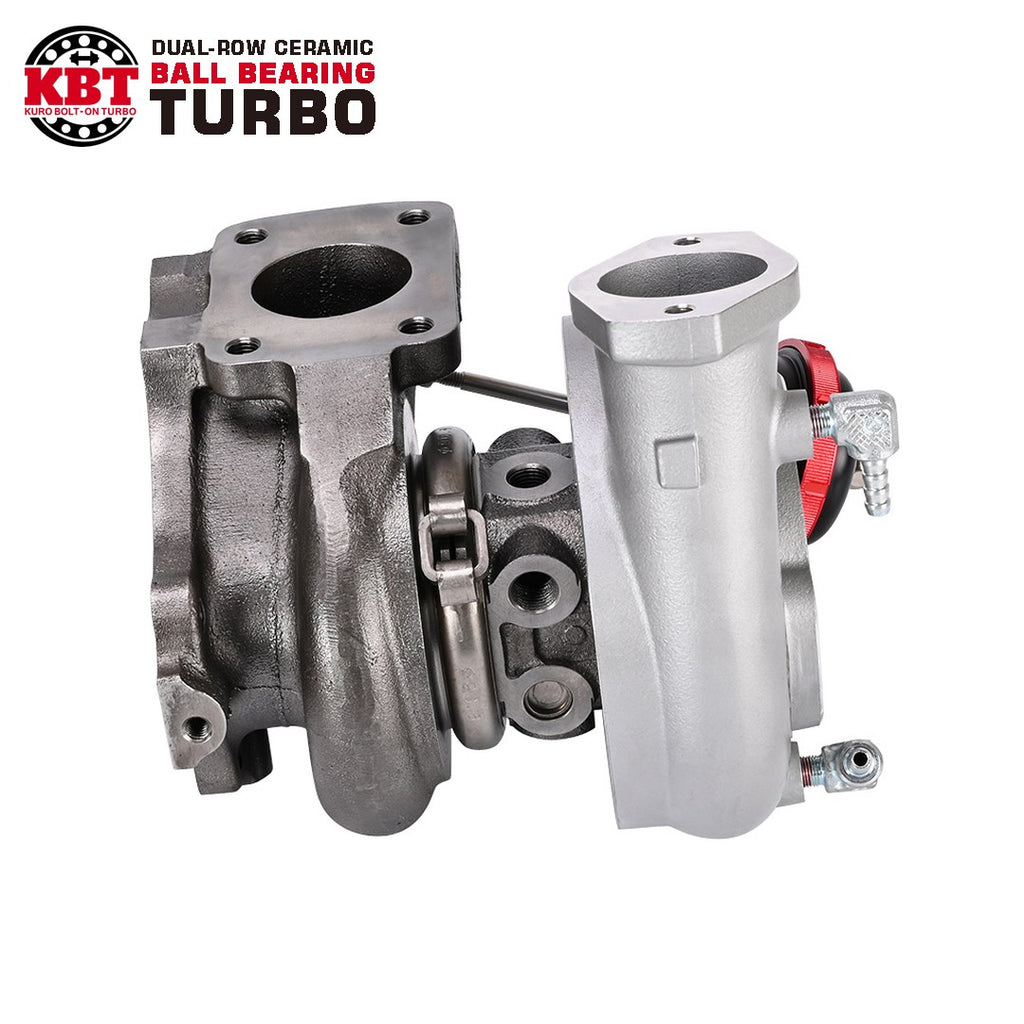

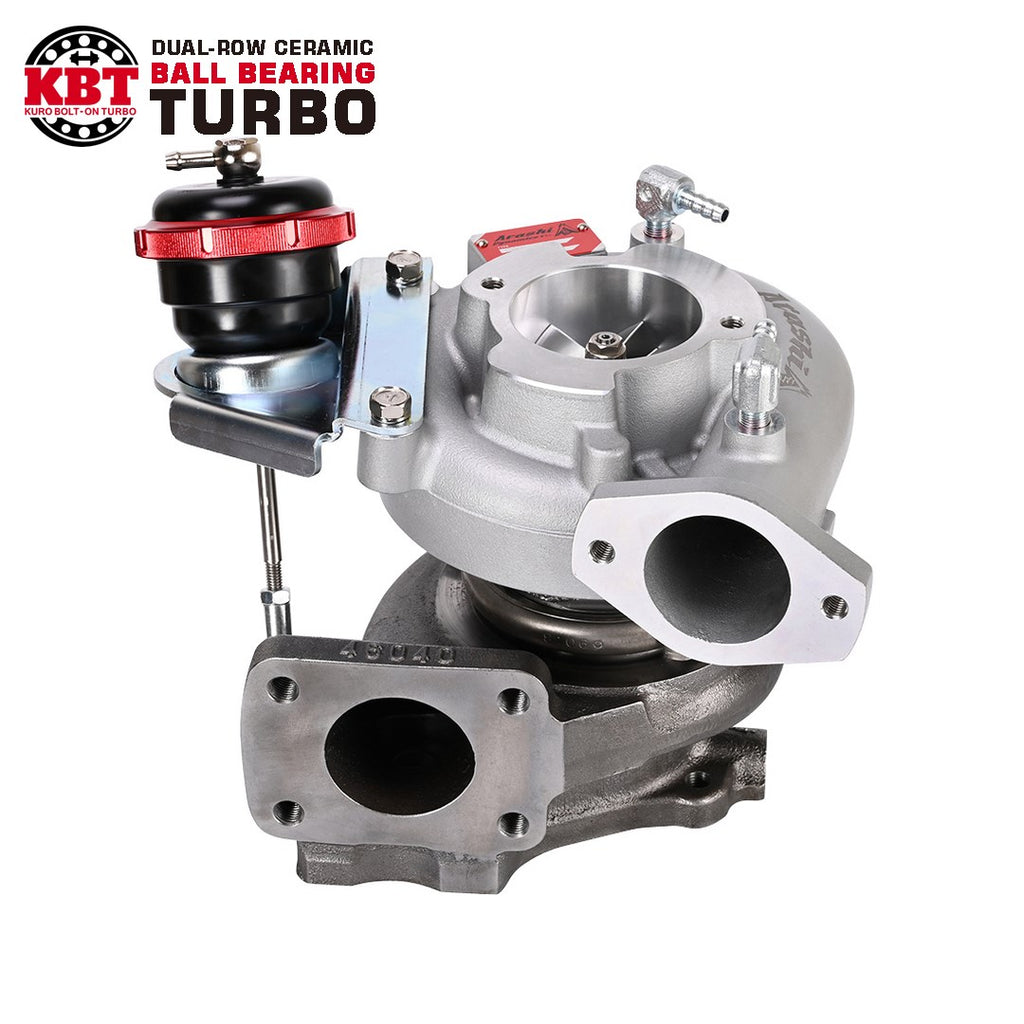

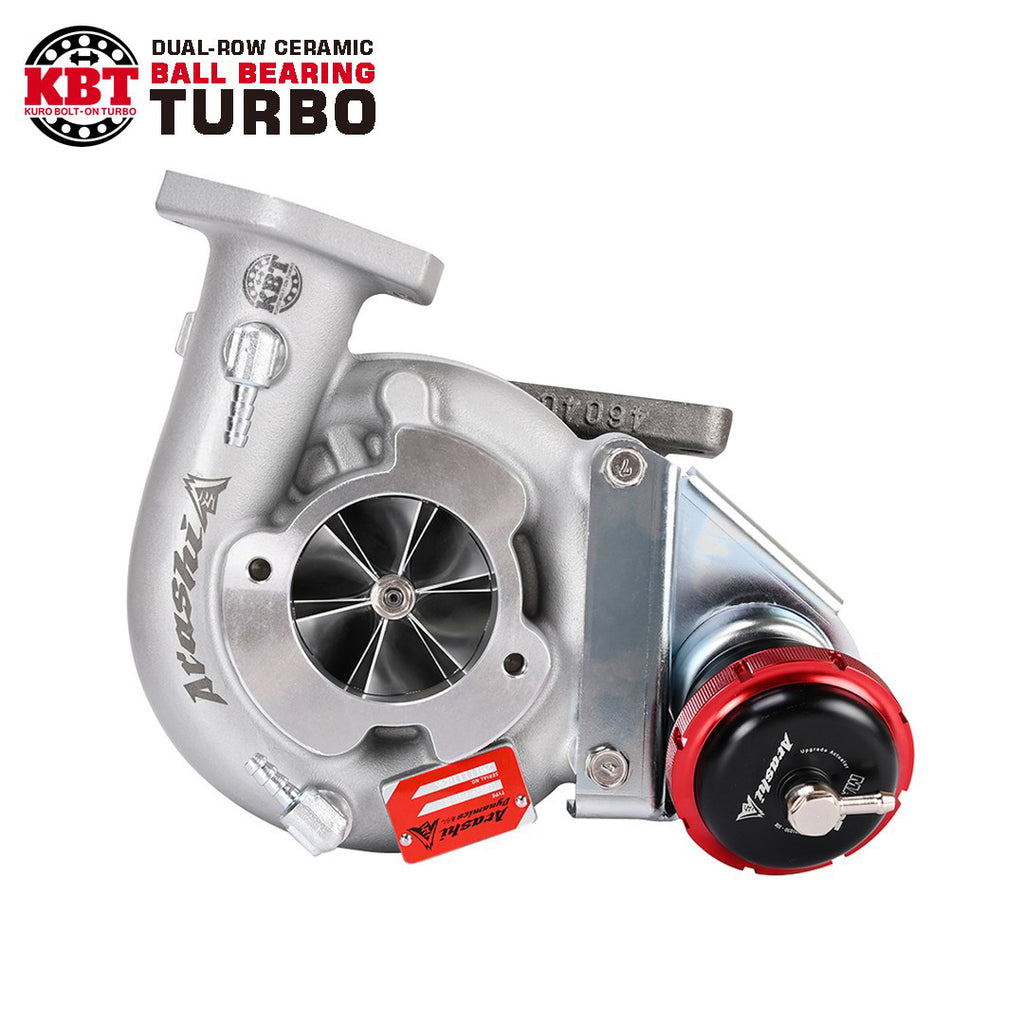

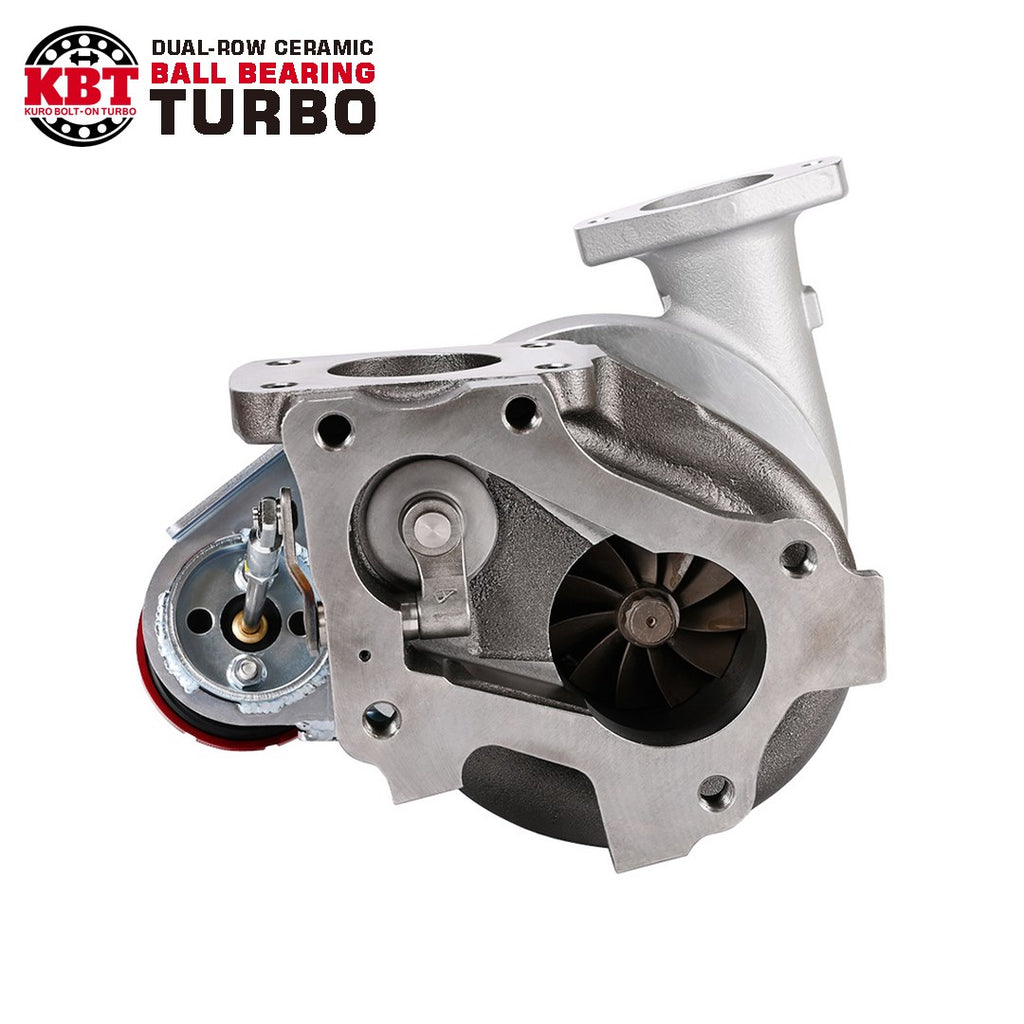

Arashi TD06H AR1 TOYOTA Supra JZX100 1JZ-GTE Ball Bearing Turbocharger

Brand New and Complete CHRAs balanced by VSR Core-Balancing Machine from Turbo Technics.

Application

- TOYOTA 1JZ-GTE VVTI CHASER / CRESTA / MARK II TOURER V JZX100 JZX110

- TOYOTA 1JZ-GTE VVTI Soarer Coupe 2.5t JZZ300

- TOYOTA's X chassis cars (Chaser, Mark II, Cresta, Verossa), the Crown Athlete V (JZS170/JZS171) and the later JZZ30 Soarer, as the JZA70 Supra

- Not fit twin-turbo CT12A Toyota Supra MK III 2.5 Twin Turbo (R) (JZA70)

Arashi Item No.

-

Replacement For.

17201-46040 Turbocharger

Turbine Wheel

TD06H

Turbine Diameter

58.8 / 67.1 mm (9 Blades)

Turbine Housing

8cm^2

Compressor Housing

Bolt-on

Compressor Wheel

AR1 (Billet) Arashi Specification

Compressor Diameter

61.3 / 82 mm (6+6 Blades)

Compressor CFM

-

Cooling

Water & Oil Cooled (Water cooling must be used for ball bearing type)

Bearing

Dual-row ceramic ball bearing

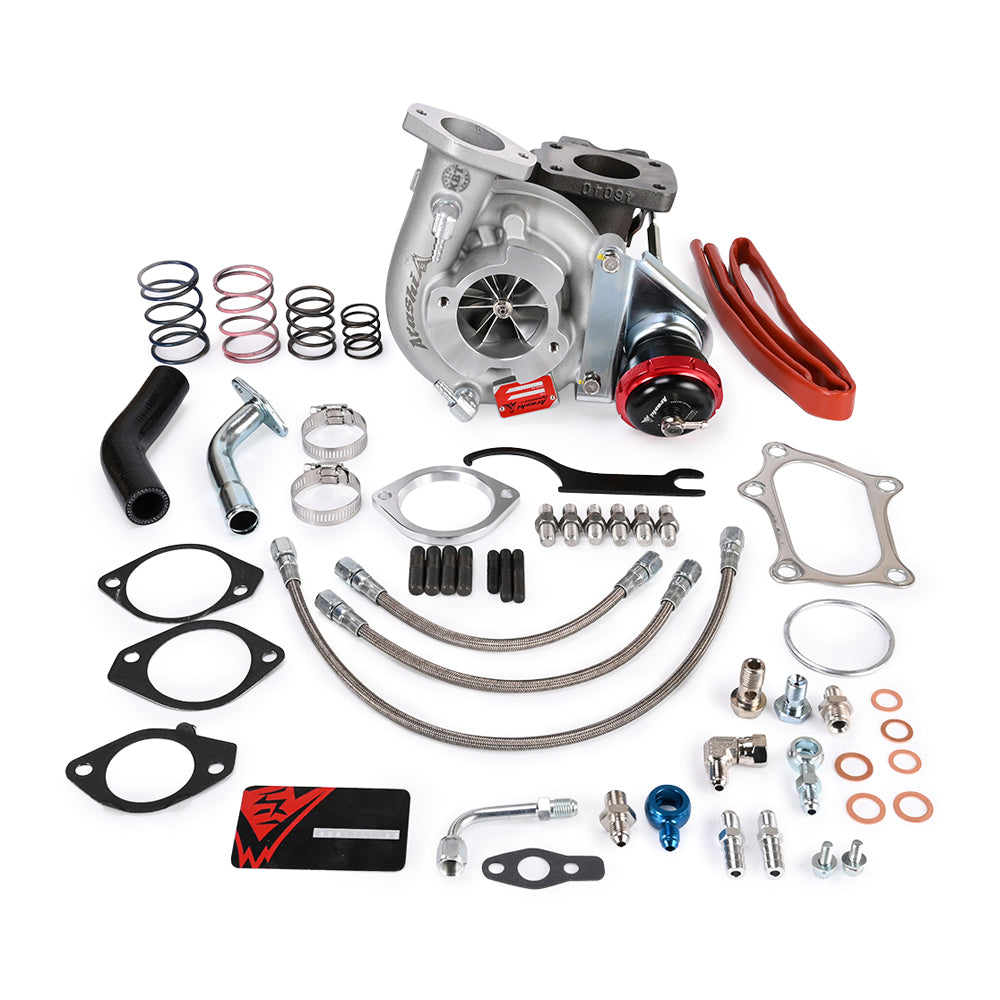

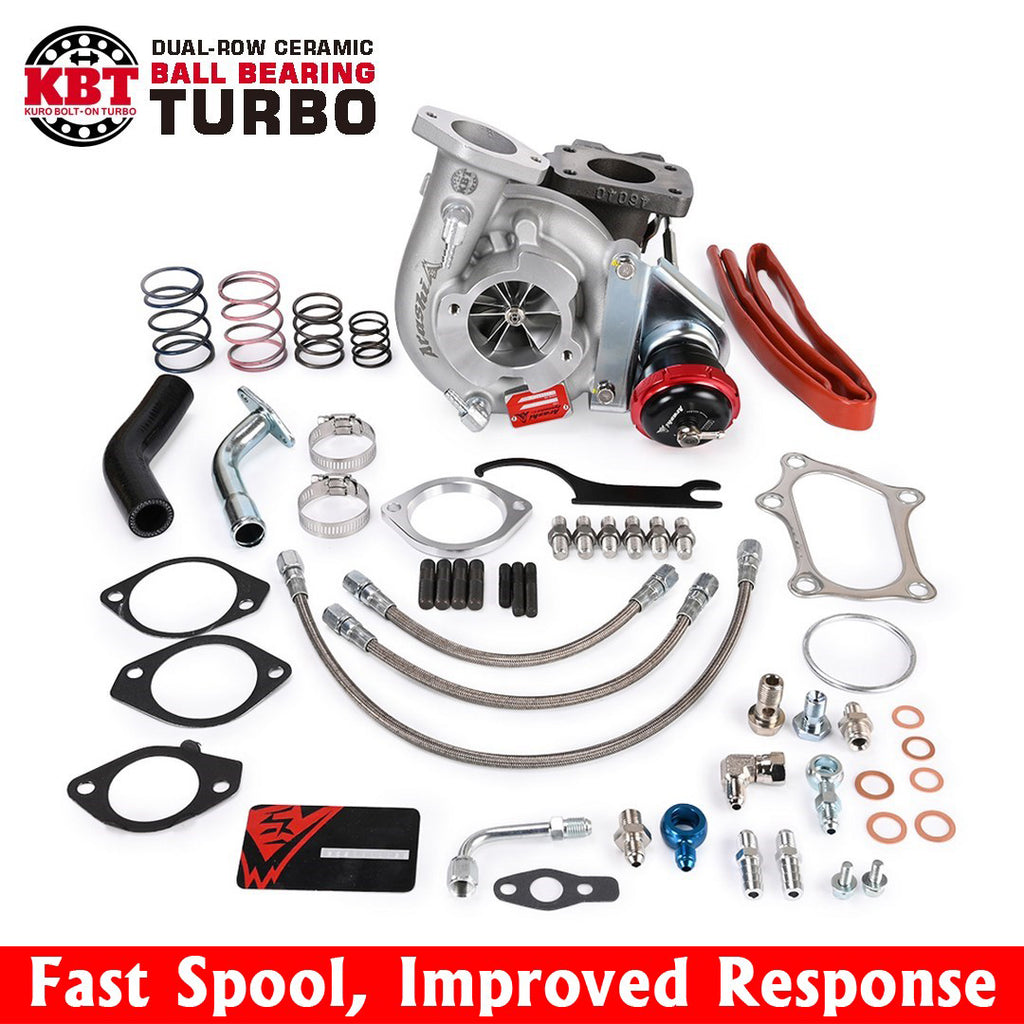

Package Included

Gaskets, extra springs and Install Kit

Flange

-

Actuator

1.1 bar spring pre-installed on adjustable actuator.(18 ways for application)

 *Contact us For any inquiries or special requests such as larger amount ordering
