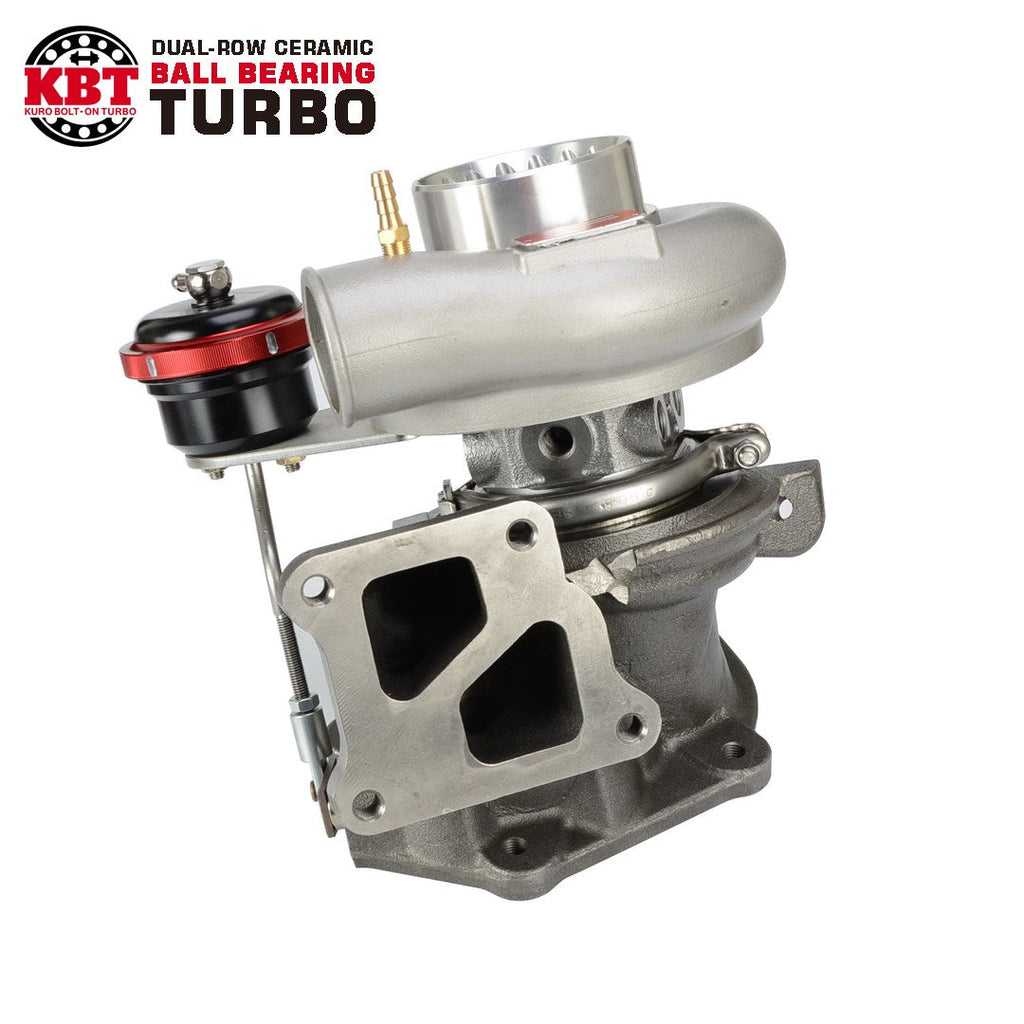

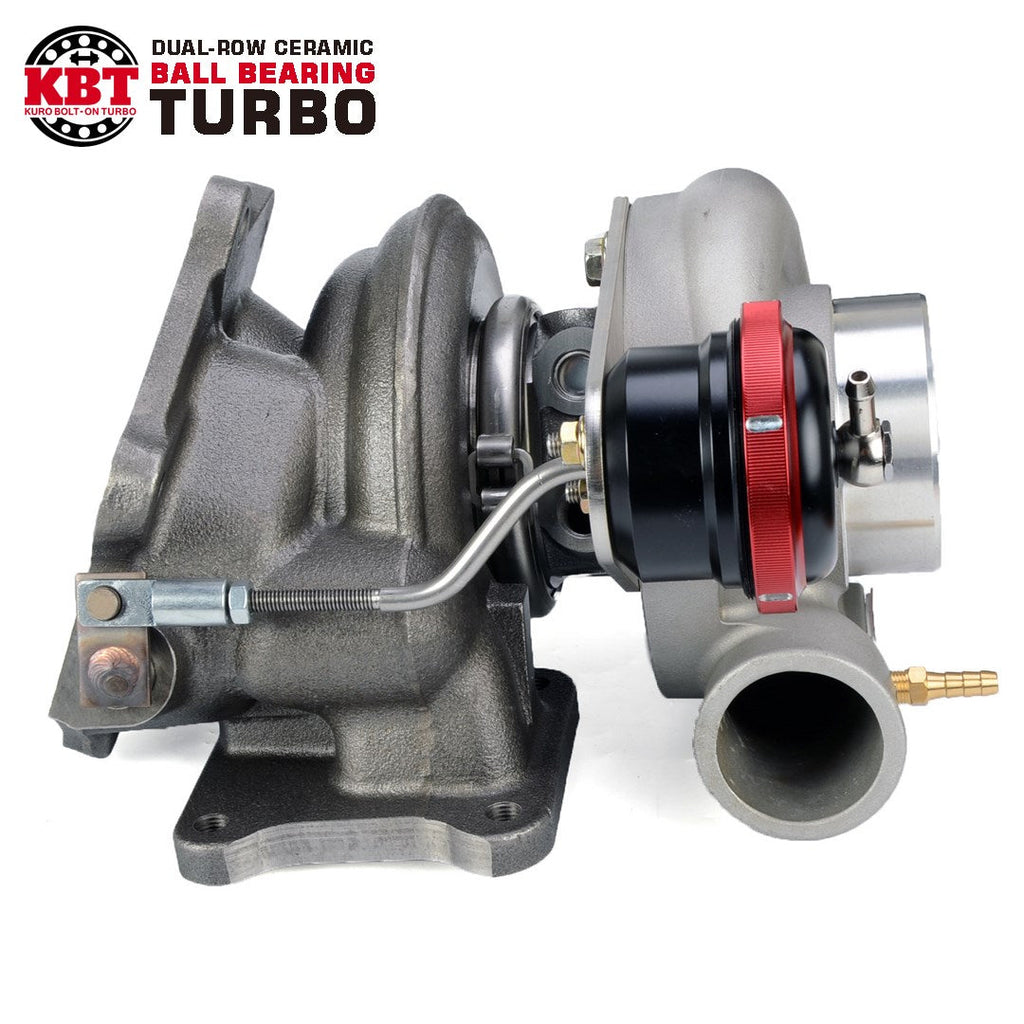

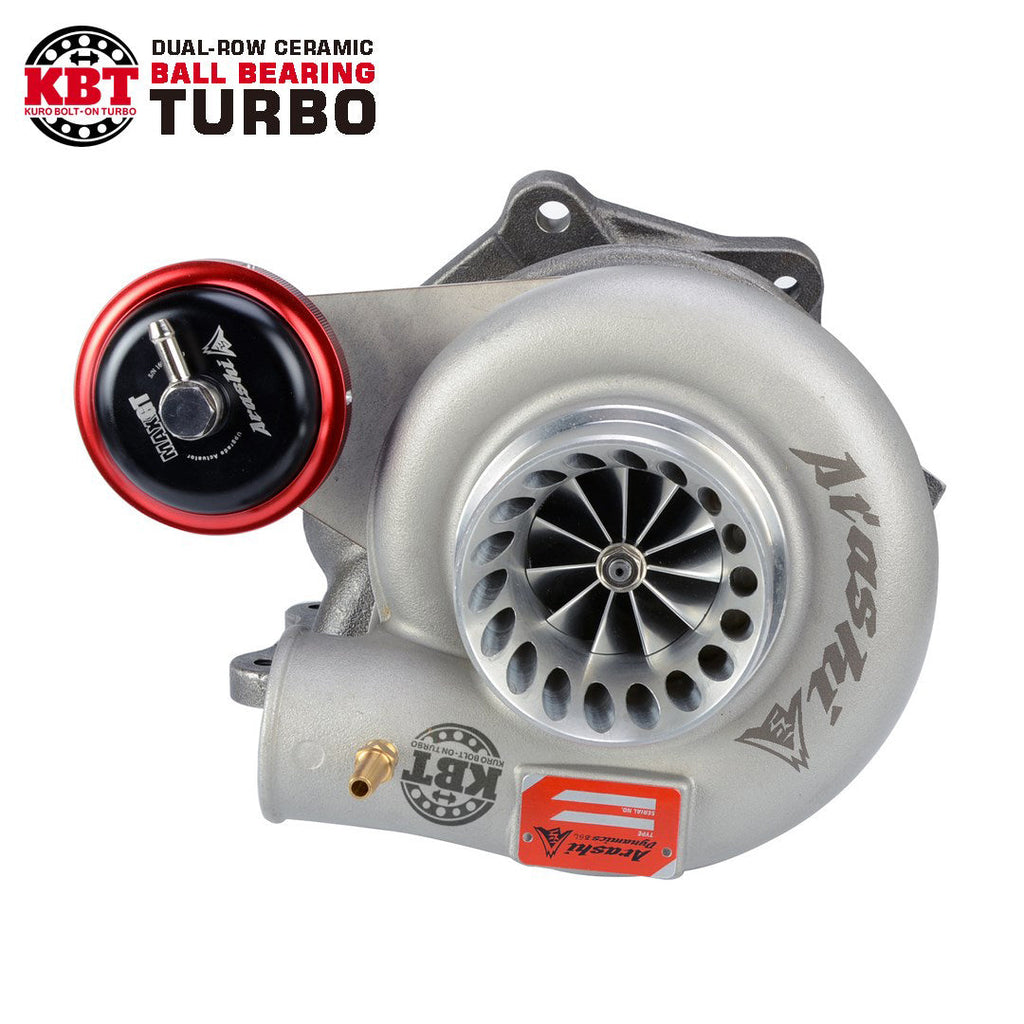

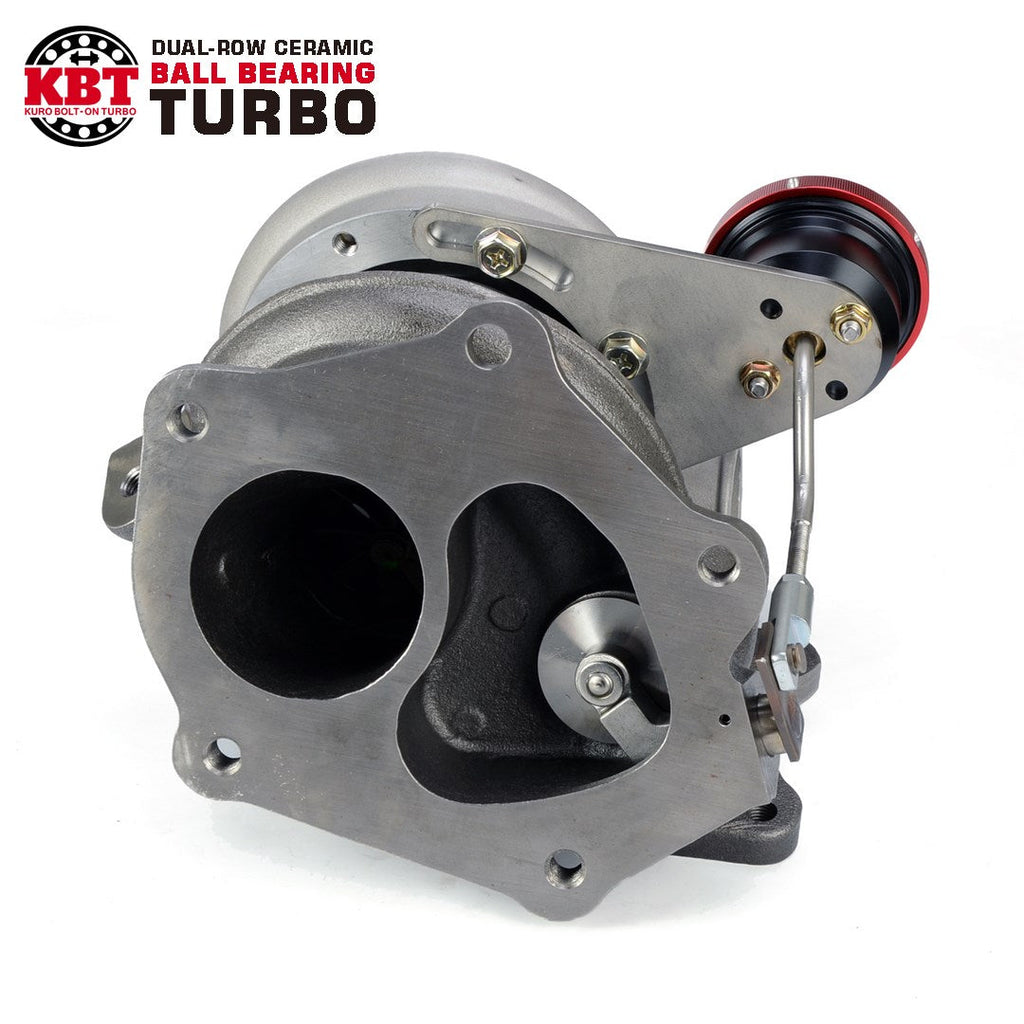

Arashi Turbo 3" Cover TD06H-18K-12cm2 Anti-surge Mitsubishi Lancer EVO X 4B11T Point Mill Wheel Ball Bearing Turbocharger

With very little effort, this Arashi turbocharger installs on your EVO X perfectly with dramatic increase of up to 350-500HP while the stock turbo runs about 250HP. To enhance its durability, turbine housing is specially made with 22% Nickel. Full installation kit is included for easy installation and there are 18 setup options for the boost range with the adjustable actuator.

Brand New and Complete CHRAs balanced by VSR Core-Balancing Machine from Turbo Technics.

Application

Mitsubishi Lancer 4B11T EVO X / EVO 10

Arashi Item No.

-

Replacement For.

- Stock TD05H Turbo P/N 49378-01641, 49378-01642, etc

- Require Extra 3.15 inches Pipe

Turbine Wheel

TD06H

Turbine Diameter

58.8 / 67.1 mm (9 Blades Performance High Inconel)

Turbine Housing

12cm^2 / 0.89 A/R with Ni 22% turbine housing which endures higher temperature

Compressor Housing

3.15" inlet / 80 mm / Anti-surge

Compressor Wheel

18K (Point Mill Wheel)

Compressor Diameter

55 / 75 mm (7+7 Blades)

Compressor CFM

-

Cooling

Water & Oil Cooled

Bearing

Dual-row ceramic ball bearing

Package Included

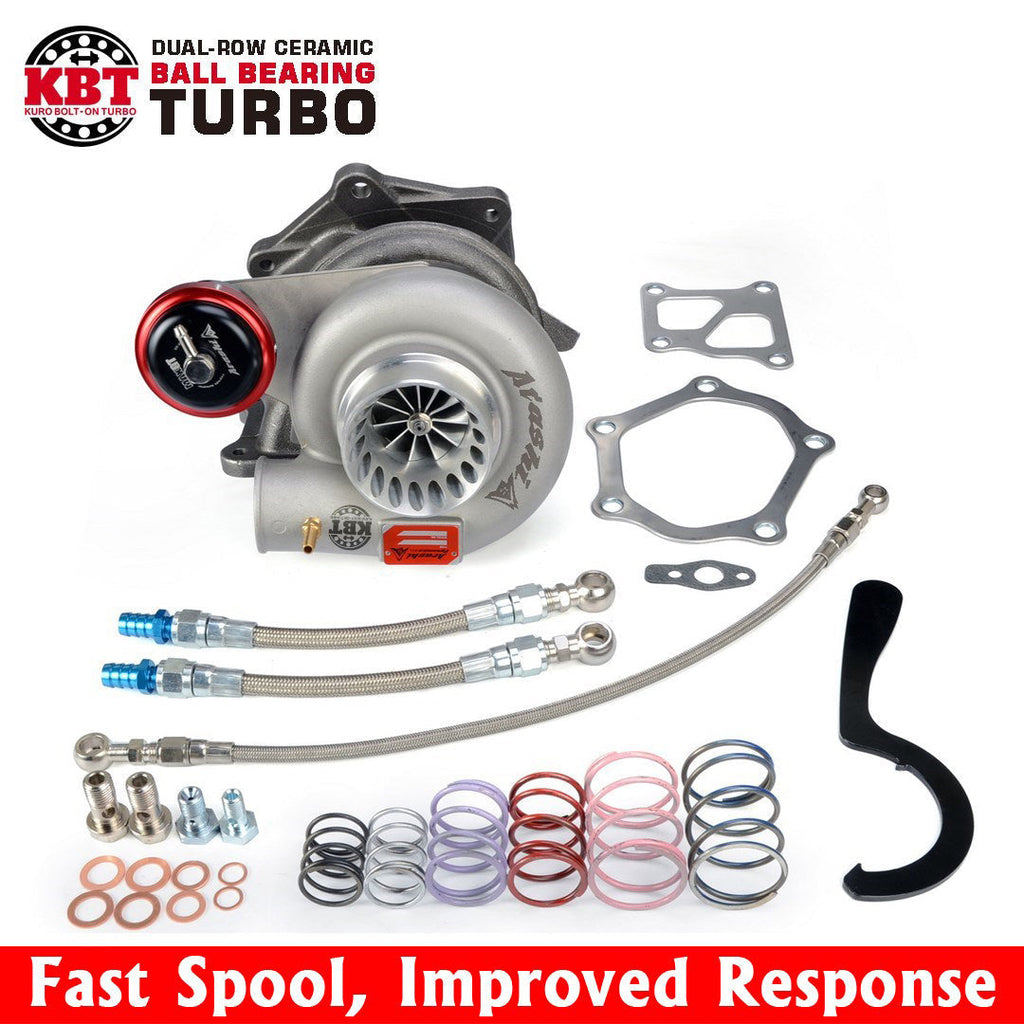

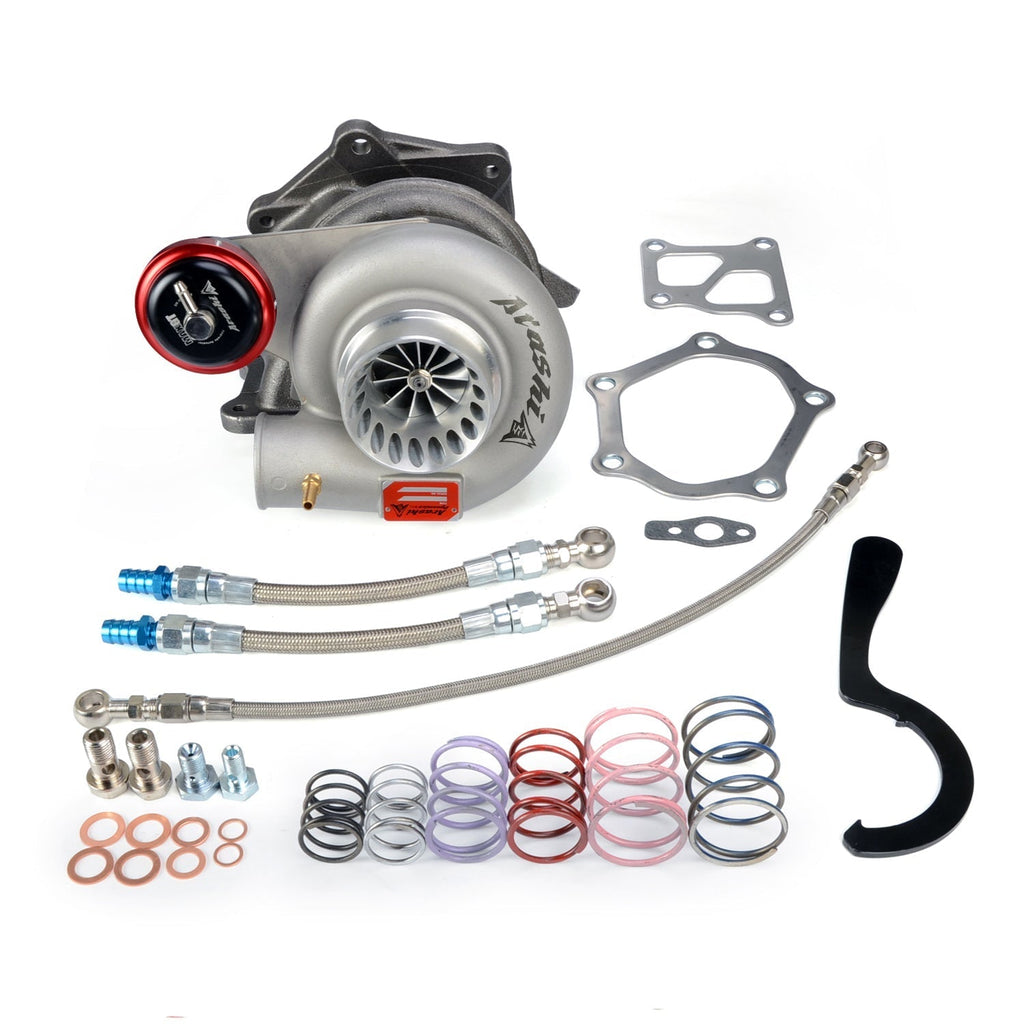

Gaskets, extra springs and Install Kit

Flange

Standard EVO X

Actuator

1.1 bar spring pre-installed on adjustable actuator.(18 ways for application)

 *Contact us For any inquiries or special requests such as larger amount ordering
