Short Type

$1,199.00$1,079.10
LAB Z Turbo ST67 V-band 0.92 A/R IWG (G25-660)
LAB Z Turbo ST67 V-band 0.92 A/R IWG (G25-660)
LAB Z Turbo ST67 V-band 0.92 A/R IWG (G25-660)
LAB Z Turbo ST67 V-band 0.92 A/R IWG (G25-660)
LAB Z Turbo ST67 V-band 0.92 A/R IWG (G25-660)
LAB Z Turbo ST67 V-band 0.92 A/R IWG (G25-660)
LAB Z Turbo ST67 V-band 0.92 A/R IWG (G25-660)
LAB Z Turbo ST67 V-band 0.92 A/R IWG (G25-660)
LAB Z Turbo ST67 V-band 0.92 A/R IWG (G25-660)
LAB Z Turbo ST67 V-band 0.92 A/R IWG (G25-660)
4
  • SPECIFICATIONS
  • TERMS & CONDITIONS

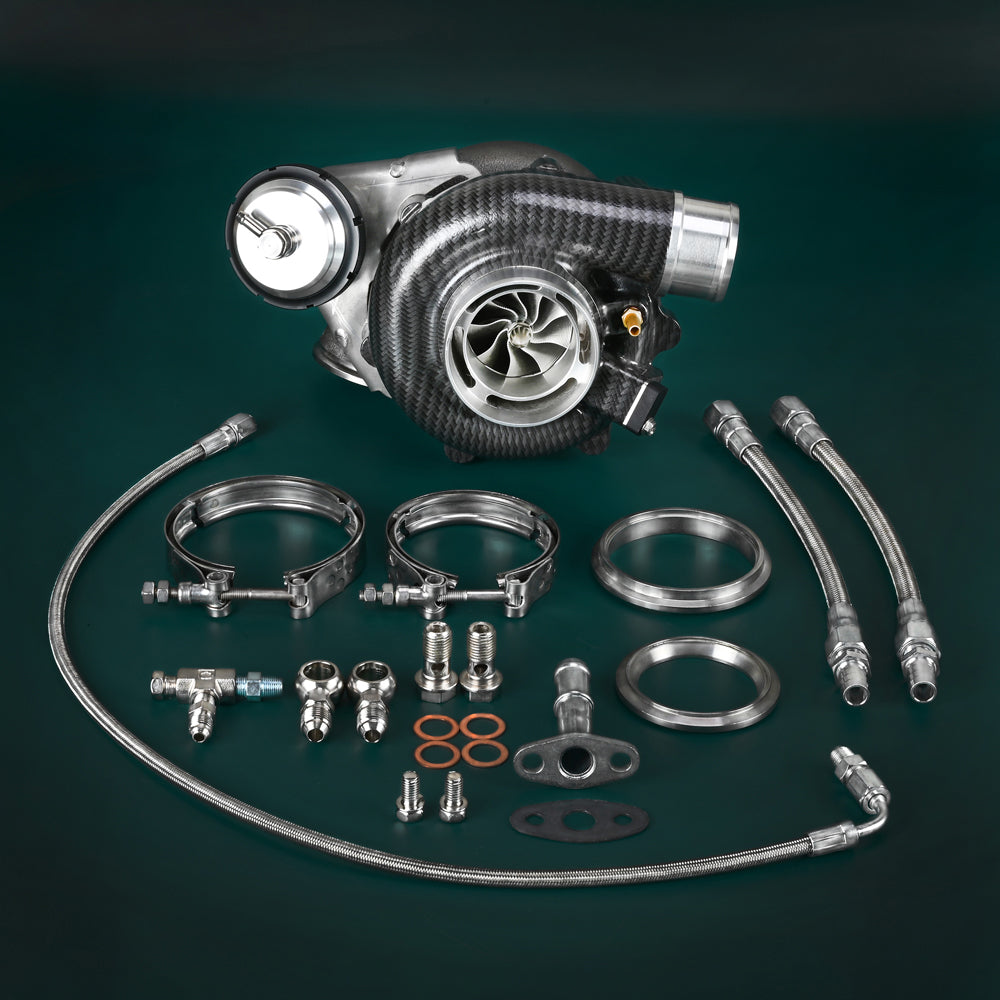

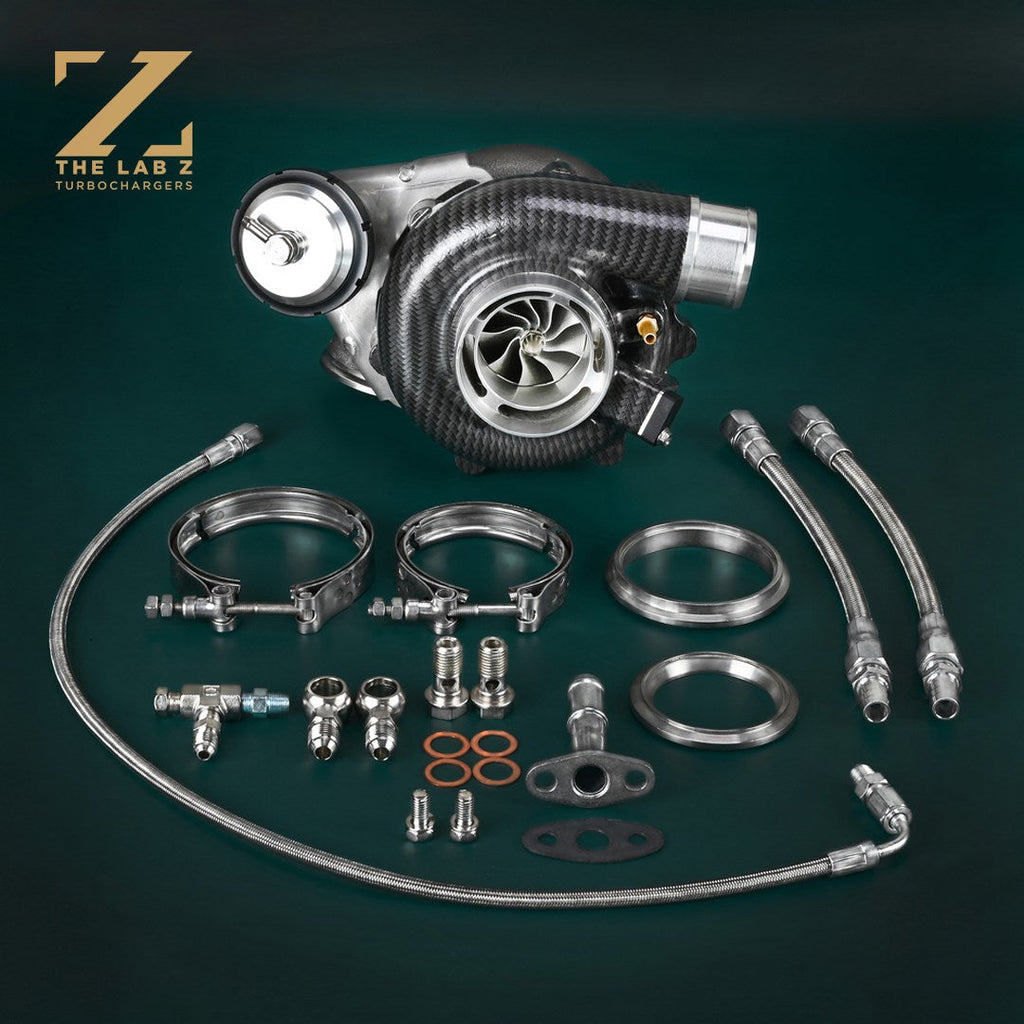

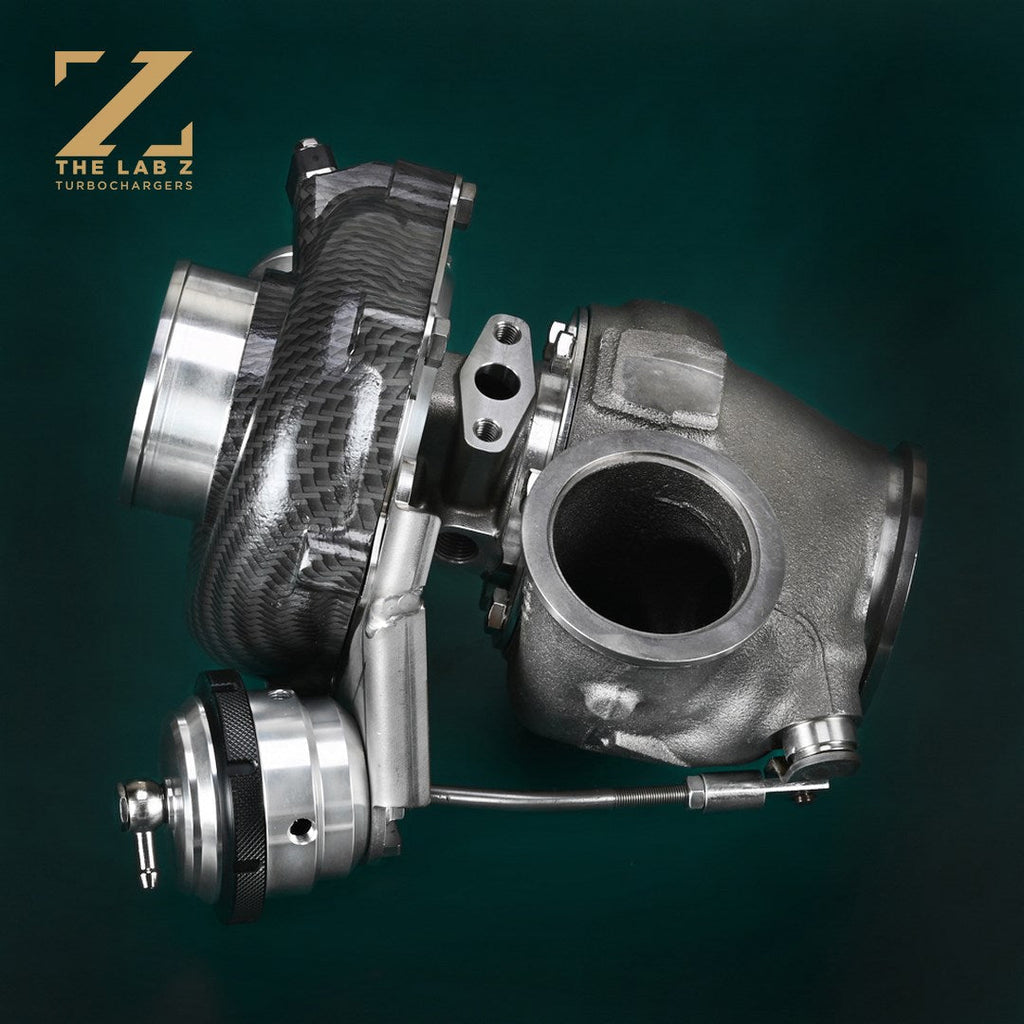

LAB Z Turbo ST67 V-band 0.92 A/R Internal Wastegate (G25-660) Ball Bearing Turbo w/ Aluminum Center Housing



Application:

● Universal turbo for performance use, racing car, etc.

● Displacement : 1.4L ~ 3.0L

● Horsepower : 350 ~ 660 HP



Wheel Spec:

● Compressor Wheel : 54.3 / 67.5 mm (9 Swirling Blades / Point Mill Wheel)

● Turbine Wheel : 49 / 54 mm (9 Blades Performance High Inconel)



Compressor Housing:

● Inlet 3" / Outlet 2" / AR70 / Carbon Outfit



Turbine Housing:

● V-band 0.92 A/R / Material : D5S



Bearing Type:

●  Lab Z Ceramic Ball Bearing



Cooling:

● Oil Water Cooled System (Water cooling must be used for ball bearing type)



Flange Size:

● Flange Outlet : Inside diameter 2.87" (73 mm);Outside diameter 3.2" (81.5 mm) / 3.53" (90 mm)

● Flange Inlet : Inside diameter 2.1" (55 mm);Outside diameter 3" (76.2 mm)



Actuator:

● 1.1 bar spring pre-installed on adjustable actuator. (18 ways for application)



Includes:

● Install kit will be included in the package



Description:

● All the parts are new and every cartridge (CHRA) installed in each turbocharger is balanced by using Turbo Technics VSR balancing machine to ensure quality.

● CHRA balancing report will be included in the package.





 *Contact us For any inquiries or special requests such as larger amount ordering



Payment & Postage

  1. Payment and postage are different on individual items. If you don’t know how much the shipping cost is, please email me.
  2. Please pay via PayPal. If you would like to make payment via other methods, please let me know.
  3. All products will be sent after the payment is received or cleared.
  4. Payment must be completed within 7 days. If you can’t finish the payment within 7 days, please inform me, otherwise, we will cancel your order.

Delivery

1. We ship to all over the world via EMS. If some places cannot be reached via EMS, we may use express or postal air parcel. If you prefer other fast services, ie. DHL, UPS, FedEx, or TNT, please tell me as well.

2. Tracking number will be given once the parcel is sent.

3. Each country has different custom’s tax rates; tax is not included in your shipping cost, you may need to pay extra for the custom’s tax depending on where the goods are sent.

※Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.

※Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying.

Back Orders

Products in stock will be sent out immediately after receiving your order. We will email you the stock condition once we get your order.

Customer Services & Warranty & Return Policy

  1. If for any reason you are unhappy with your order, we accept returns, exchanges, or replacements 7-14 days after you received the package from us, however, the goods have to be in good condition and unused. Please note, unless the product is faulty, it must be returned at your own expense, the cost of which will be deducted from your refund. Upon receipt, the product will be inspected and a refund will be processed within 30 working days. If the product is found to be in an unreasonable condition, we reserve the right not to accept it. Arashi Dynamics is not responsible for any shipping charges.
  2. Every turbo has a 1-year warranty coverage. Other parts and accessories are covered against only manufacturing defects upon receipt of the products.
  3.  Accidental damage and damage caused by misuse is not covered by the warranty, and therefore will be charged.
