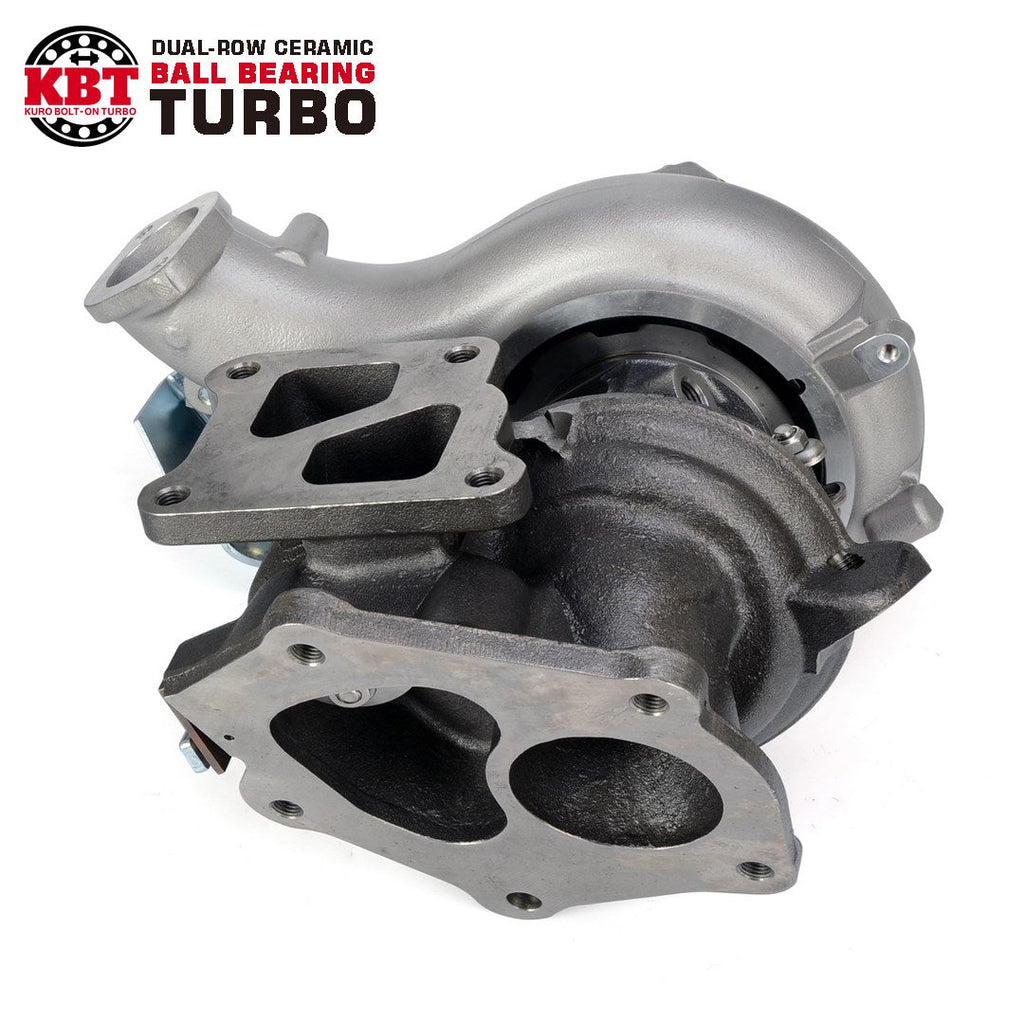

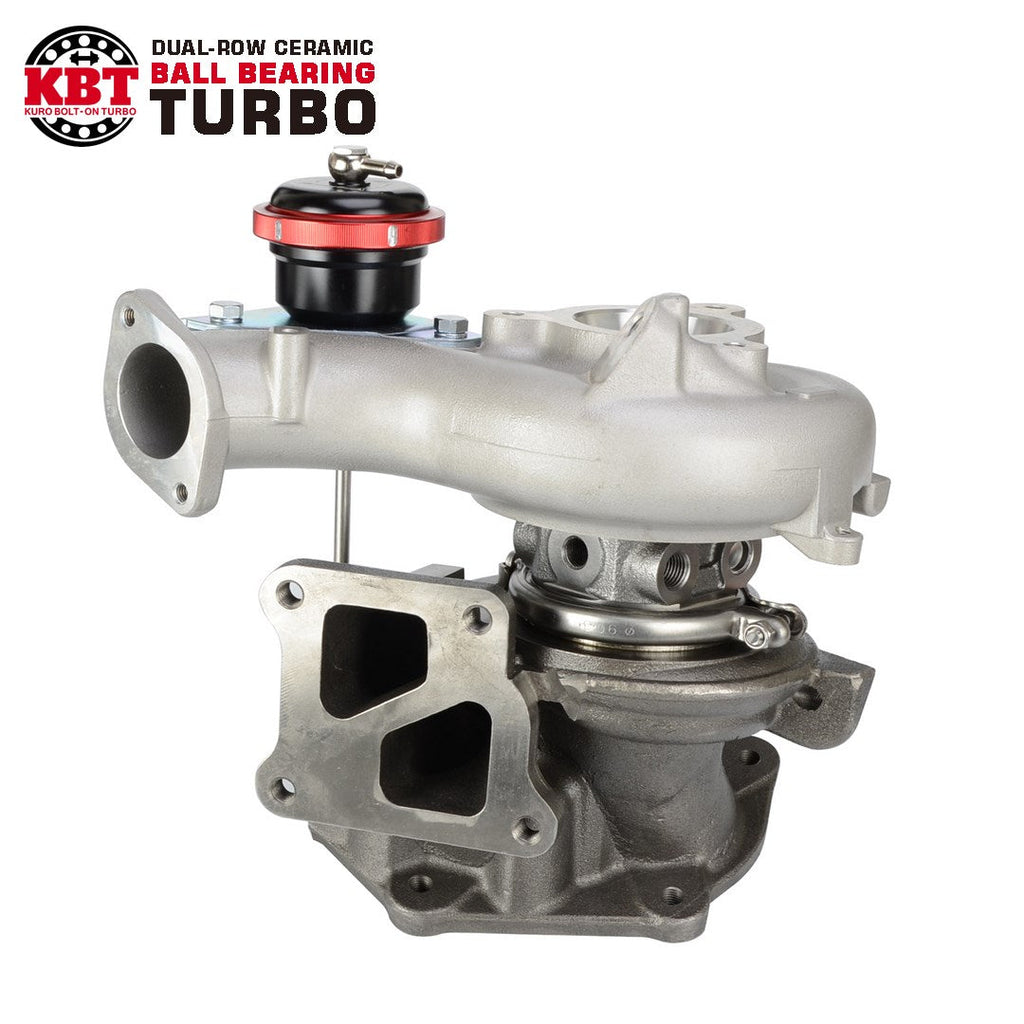

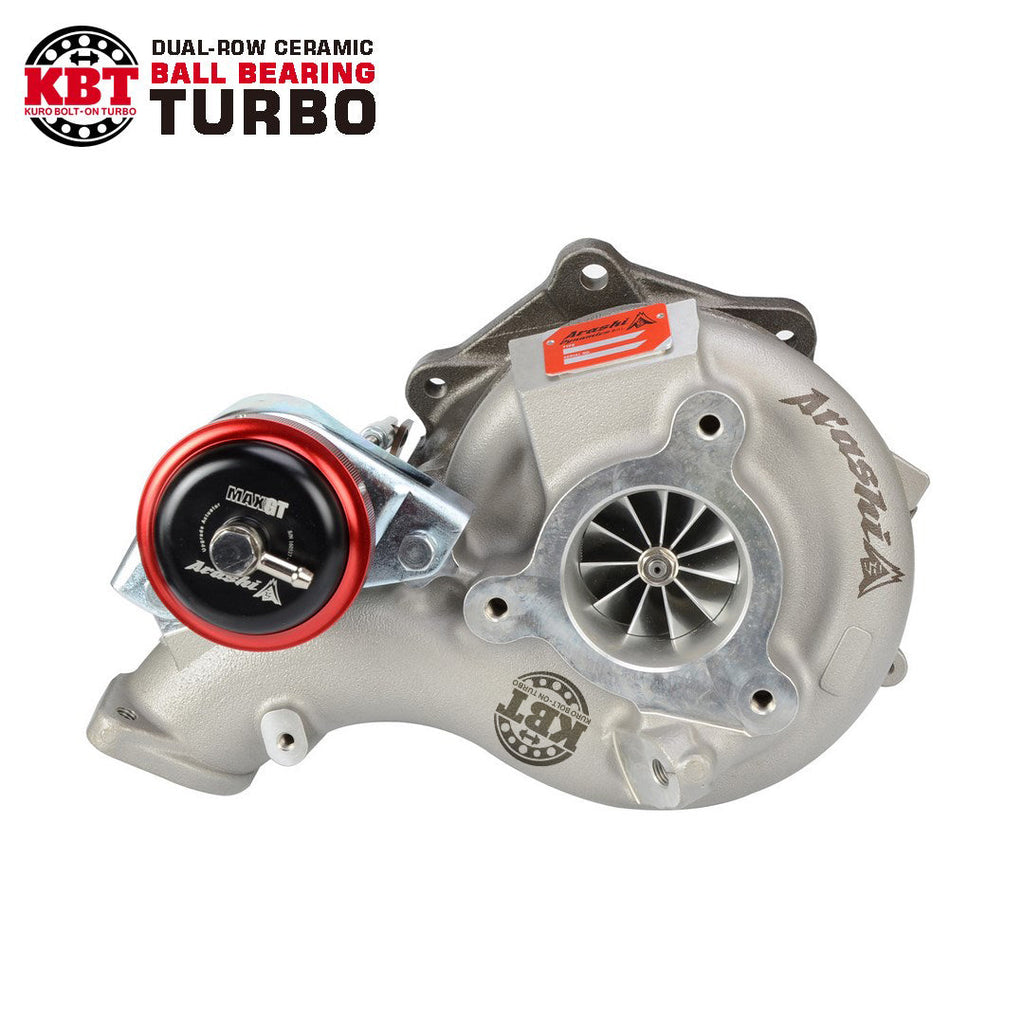

Arashi TD06H AR2 12cm2 Mitsubishi Lancer EVO X 4B11T Billet Wheel Ball Bearing Turbocharger

With very little effort, this Arashi turbocharger installs on your EVO X perfectly with dramatic increase of up to 350-500HP while the stock turbo runs about 250HP. To enhance its durability, turbine housing is specially made with 22% Nickel. Full installation kit is included for easy installation and there are 18 setup options for the boost range with the adjustable actuator.

Brand New and Complete CHRAs balanced by VSR Core-Balancing Machine from Turbo Technics.

Application

Mitsubishi Lancer 4B11T EVO X / EVO 10

Arashi Item No.

-

Replacement For.

Stock TD05H Turbo P/N 49378-01641, 49378-01642, etc

Turbine Wheel

TD06H

Turbine Diameter

58.8 / 67.1 mm (9 Blades Performance High Inconel)

Turbine Housing

12cm^2 / 0.89 A/R with Ni 22% turbine housing which endures higher temperature

Compressor Housing

Stock type bolt on housing

Compressor Wheel

AR2 (Billet) Arashi Specification

Compressor Diameter

66.6 / 84 mm (6+6 Blades)

Compressor CFM

-

Cooling

Water & Oil Cooled

Bearing

Dual-row ceramic ball bearing

Package Included

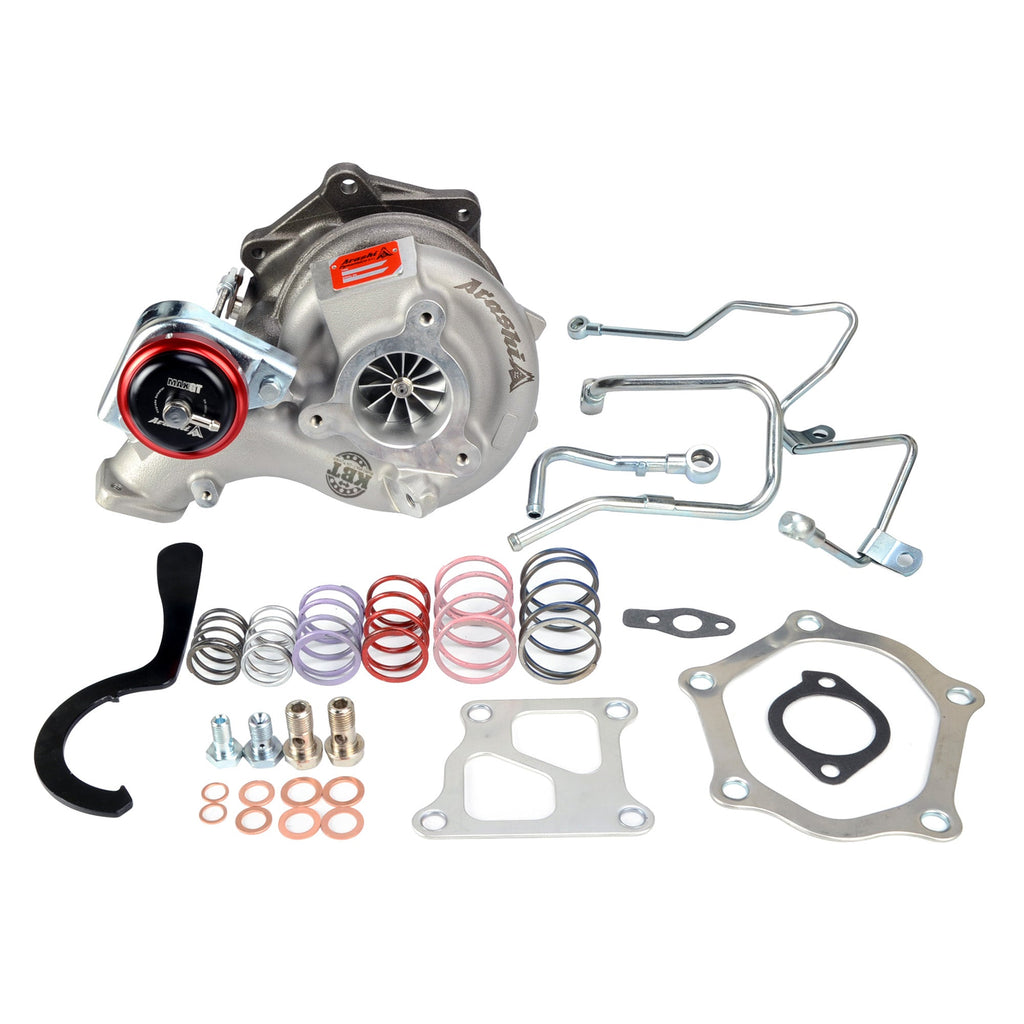

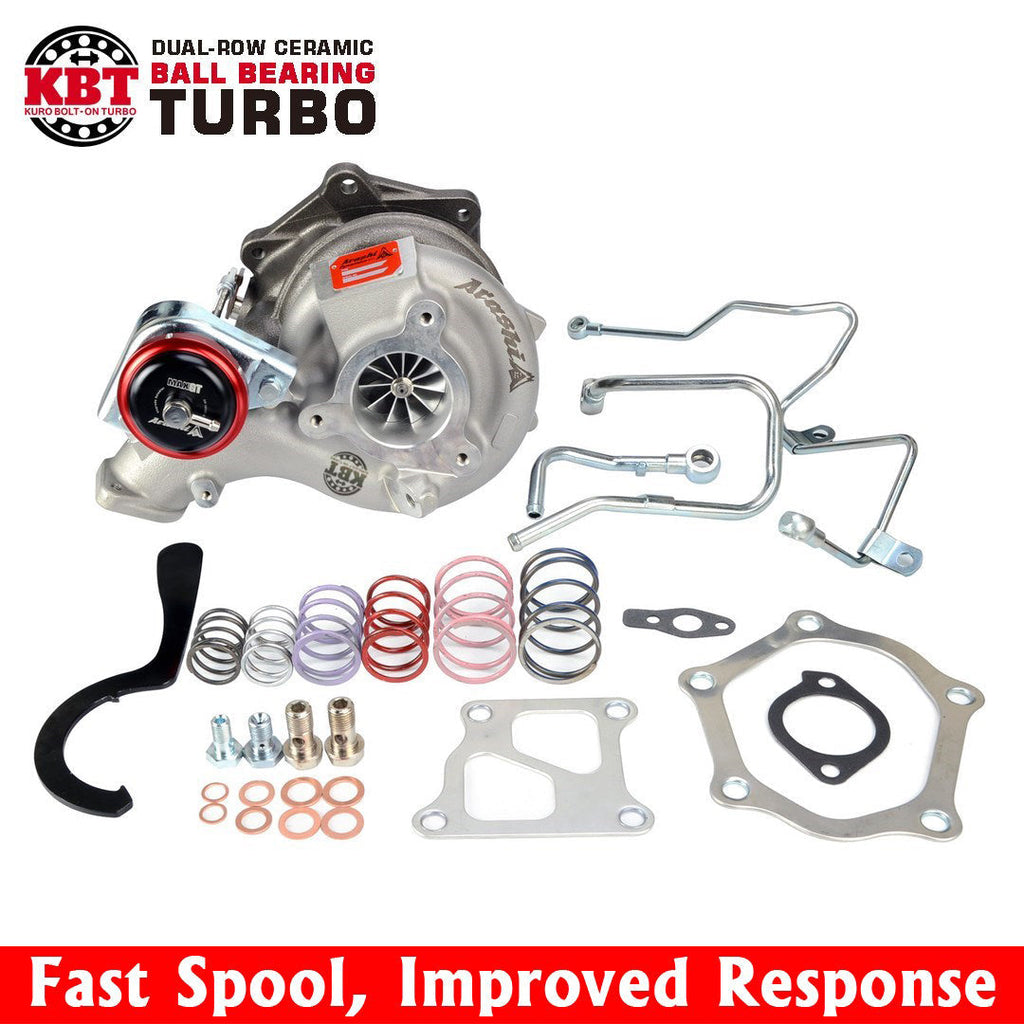

Gaskets, extra springs and Install Kit

Flange

Standard EVO X

Actuator

1.1 bar spring pre-installed on adjustable actuator.(18 ways for application)

 *Contact us For any inquiries or special requests such as larger amount ordering



Payment & Postage

  1. Payment and postage are different on individual items. If you don’t know how much the shipping cost is, please email me.
  2. Please pay via PayPal. If you would like to make payment via other methods, please let me know.
  3. All products will be sent after the payment is received or cleared.
  4. Payment must be completed within 7 days. If you can’t finish the payment within 7 days, please inform me, otherwise, we will cancel your order.

Delivery

1. We ship to all over the world via EMS. If some places cannot be reached via EMS, we may use express or postal air parcel. If you prefer other fast services, ie. DHL, UPS, FedEx, or TNT, please tell me as well.

2. Tracking number will be given once the parcel is sent.

3. Each country has different custom’s tax rates; tax is not included in your shipping cost, you may need to pay extra for the custom’s tax depending on where the goods are sent.

※Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.

※Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying.

Back Orders

Products in stock will be sent out immediately after receiving your order. We will email you the stock condition once we get your order.

Customer Services & Warranty & Return Policy

  1. If for any reason you are unhappy with your order, we accept returns, exchanges, or replacements 7-14 days after you received the package from us, however, the goods have to be in good condition and unused. Please note, unless the product is faulty, it must be returned at your own expense, the cost of which will be deducted from your refund. Upon receipt, the product will be inspected and a refund will be processed within 30 working days. If the product is found to be in an unreasonable condition, we reserve the right not to accept it. Arashi Dynamics is not responsible for any shipping charges.
  2. Every turbo has a 1-year warranty coverage. Other parts and accessories are covered against only manufacturing defects upon receipt of the products.
  3.  Accidental damage and damage caused by misuse is not covered by the warranty, and therefore will be charged.
