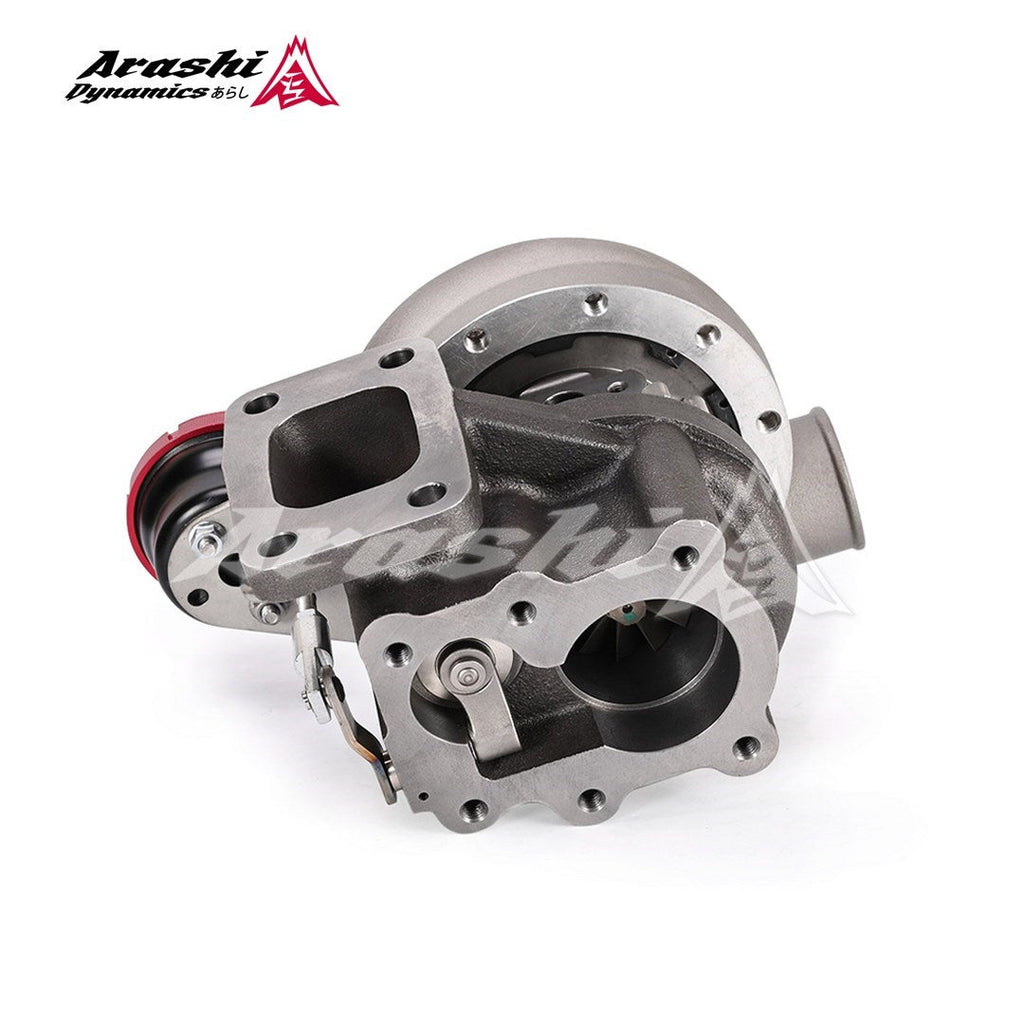

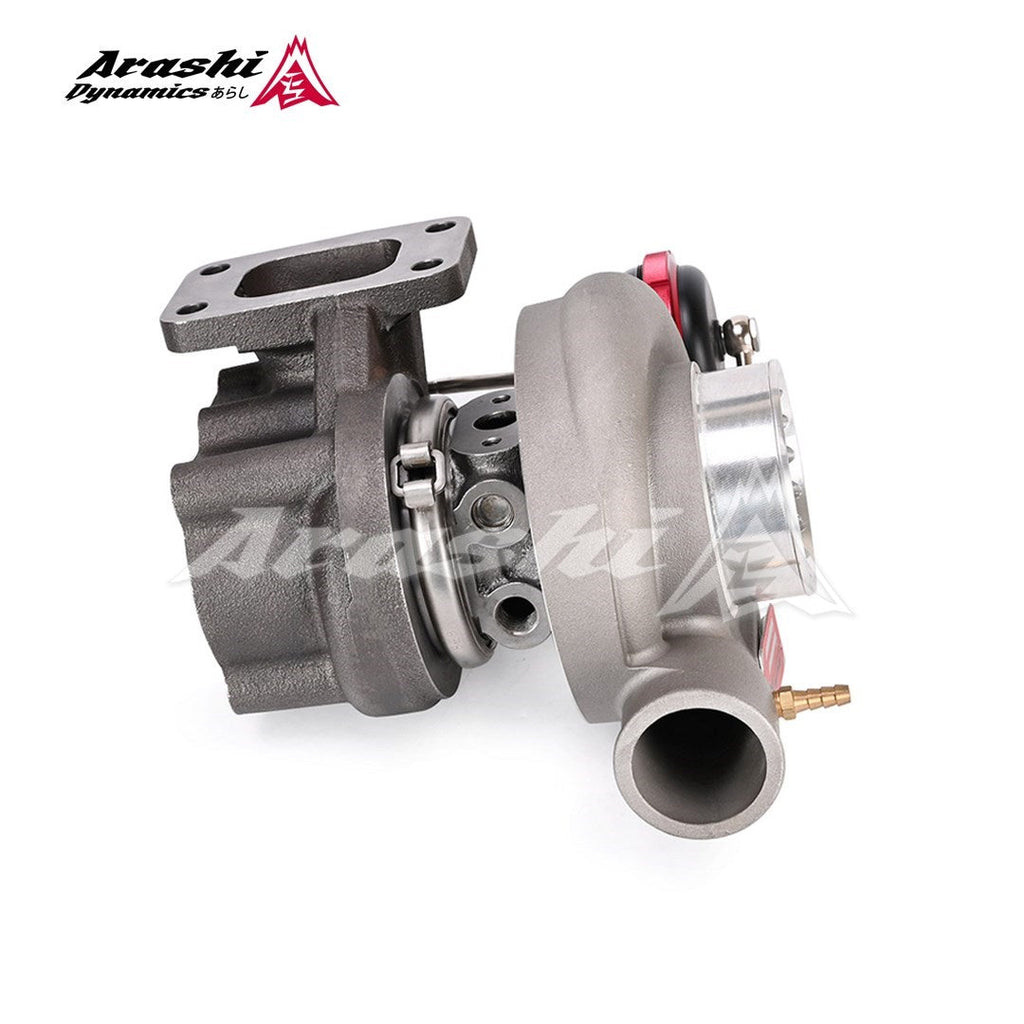

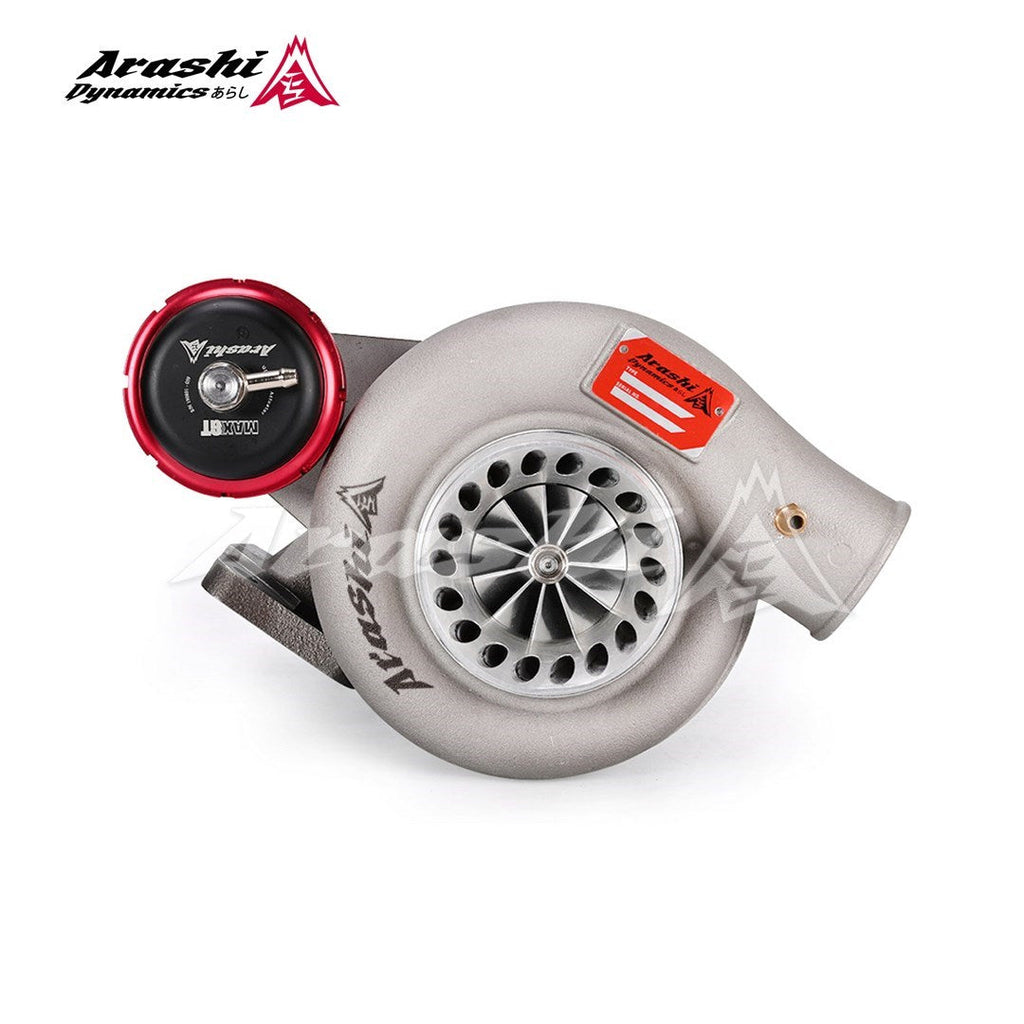

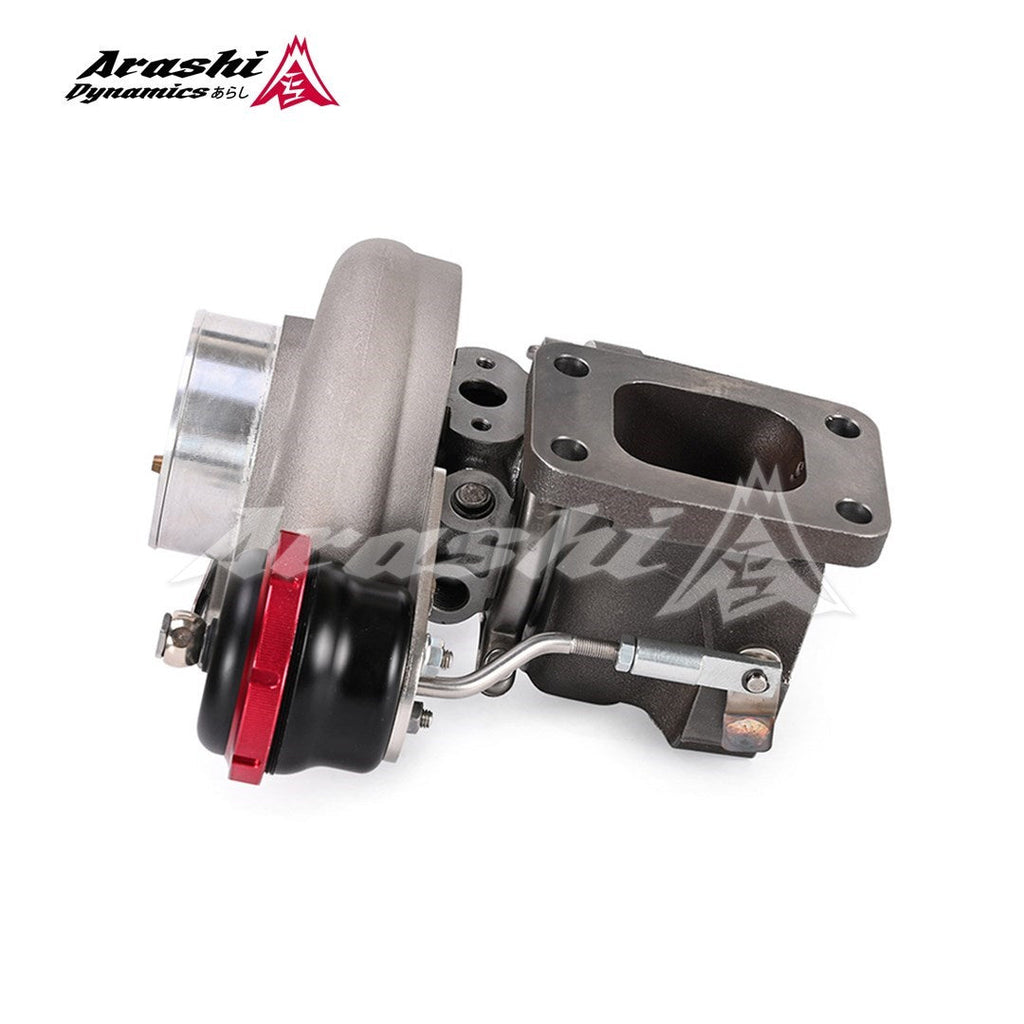

Arashi Billet Turbo TD05H-18G-6cm2 6 Bolt TD42 Patrol Top Mount

Brand New and Complete CHRAs balanced by VSR Core-Balancing Machine from Turbo Technics.


- Nissan TD42 Patrol with top mount exhaust manifold

- Turbine housing can bolt up to fit factory exhaust manifold and dump pipe.

- Compressor housing inlet pipe needs to be modified to fit this 3.15” Cover

Arashi Item No.


Replacement For.


Turbine Wheel


Turbine Diameter

49.2/55.8 mm (9 Blades)We also offer 12 blades. Please let us know if you need to change

Turbine Housing

6cm^2 / 0.41 A/R / 6 Bolt

Compressor Housing

Inlet Anti-surge 3.15" / 80mm
Outlet 2" / 50.8mm

Compressor Wheel

18G (Billet)

Compressor Diameter

50.3/68 mm(GTX 11 Blades) We also offer 6+6, 7+7 Blades. Please let us know if you need to change.

Compressor CFM



Water & Oil Cooled


Arashi Racing 360 degrees UPGRADE Journal Bearing

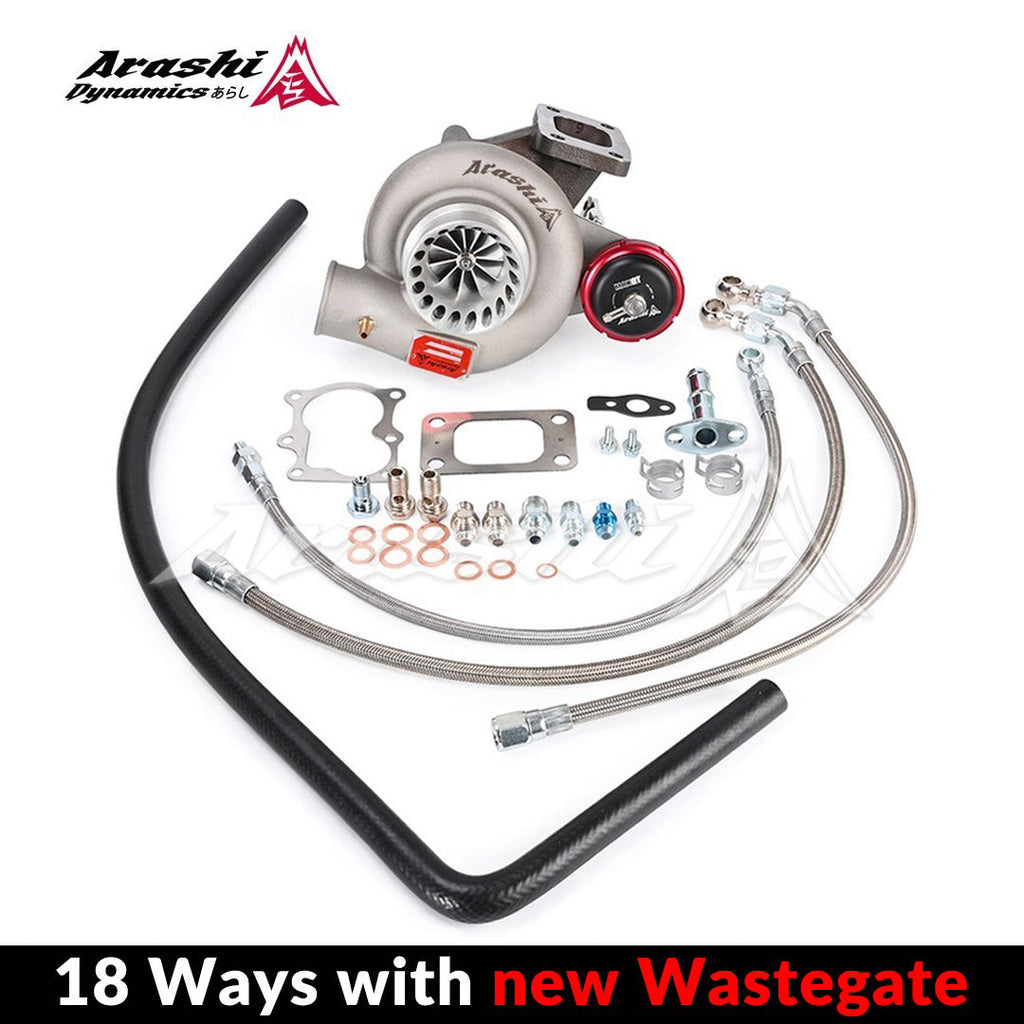

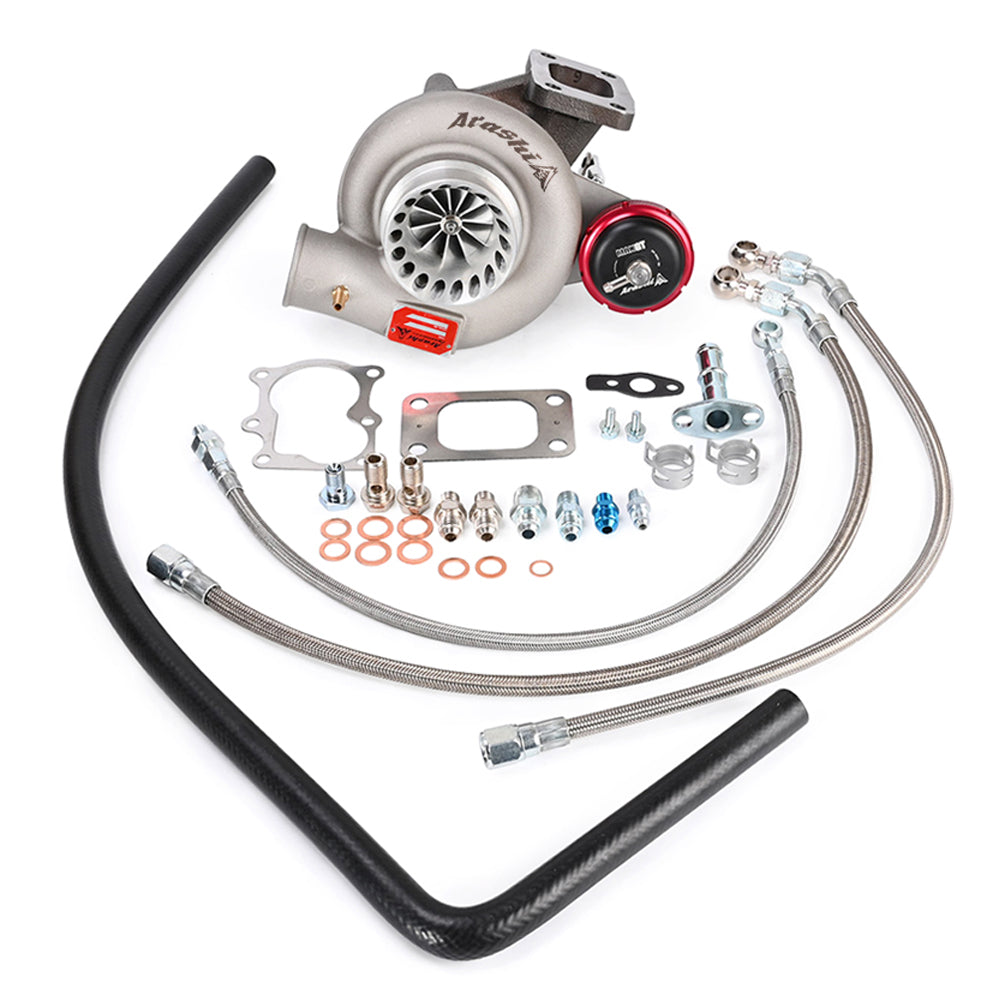

Package Included

Gaskets and Install Kit

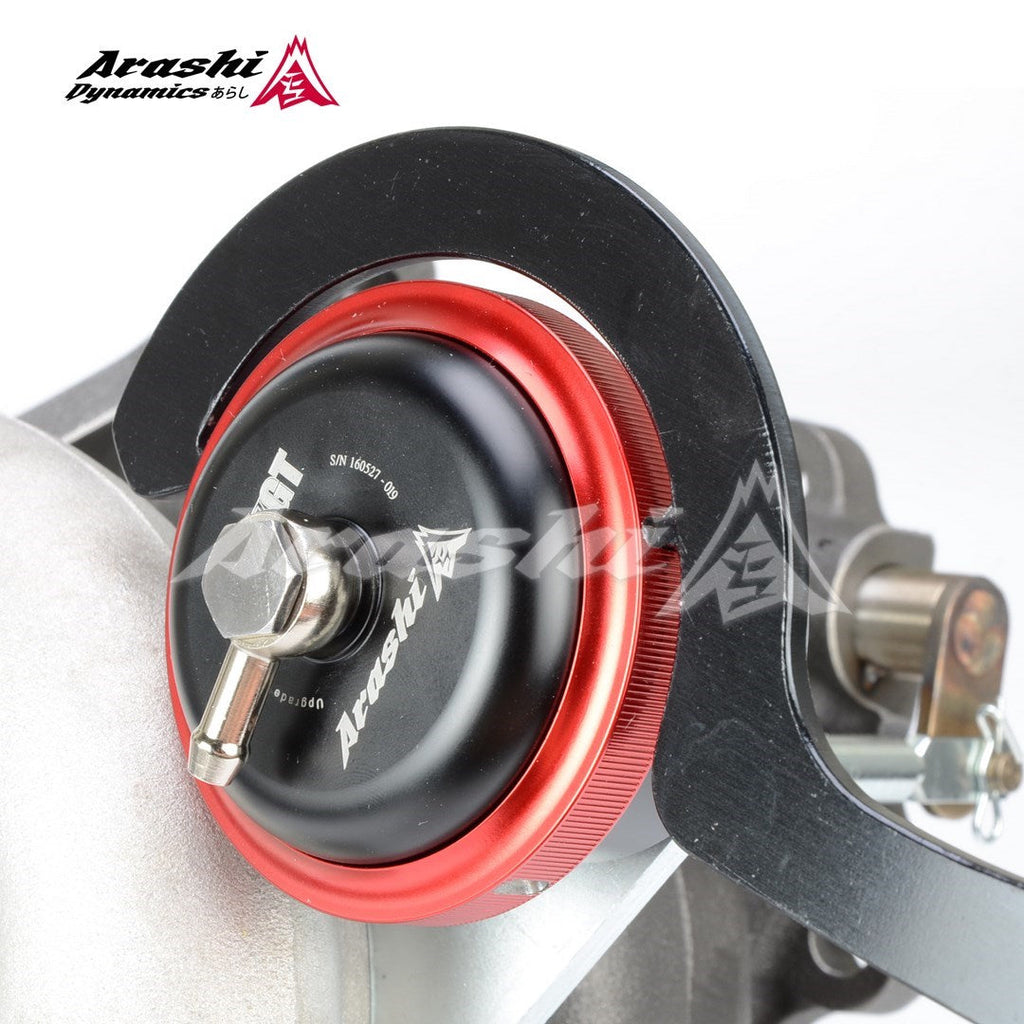

1.1 bar spring pre-installed on adjustable actuator.(18 ways for application)

 *Contact us For any inquiries or special requests such as larger amount ordering


Payment & Postage

  1. Payment and postage are different on individual items. If you don’t know how much the shipping cost is, please email me.
  2. Please pay via PayPal. If you would like to make payment via other methods, please let me know.
  3. All products will be sent after the payment is received or cleared.
  4. Payment must be completed within 7 days. If you can’t finish the payment within 7 days, please inform me, otherwise, we will cancel your order.


1. We ship to all over the world via EMS. If some places cannot be reached via EMS, we may use express or postal air parcel. If you prefer other fast services, ie. DHL, UPS, FedEx, or TNT, please tell me as well.

2. Tracking number will be given once the parcel is sent.

3. Each country has different custom’s tax rates; tax is not included in your shipping cost, you may need to pay extra for the custom’s tax depending on where the goods are sent.

※Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.

※Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying.

Back Orders

Products in stock will be sent out immediately after receiving your order. We will email you the stock condition once we get your order.

Customer Services & Warranty & Return Policy

  1. If for any reason you are unhappy with your order, we accept returns, exchanges, or replacements 7-14 days after you received the package from us, however, the goods have to be in good condition and unused. Please note, unless the product is faulty, it must be returned at your own expense, the cost of which will be deducted from your refund. Upon receipt, the product will be inspected and a refund will be processed within 30 working days. If the product is found to be in an unreasonable condition, we reserve the right not to accept it. Arashi Dynamics is not responsible for any shipping charges.
  2. Every turbo has a 1-year warranty coverage. Other parts and accessories are covered against only manufacturing defects upon receipt of the products.
  3.  Accidental damage and damage caused by misuse is not covered by the warranty, and therefore will be charged.
