KBT Turbo Ball Bearing

$999.00$949.05
TD42 Patrol TD05H-18G-6cm 3 Bolt Low Mount Ball Bearing
TD42 Patrol TD05H-18G-6cm 3 Bolt Low Mount Ball Bearing
TD42 Patrol TD05H-18G-6cm 3 Bolt Low Mount Ball Bearing
TD42 Patrol TD05H-18G-6cm 3 Bolt Low Mount Ball Bearing
TD42 Patrol TD05H-18G-6cm 3 Bolt Low Mount Ball Bearing
TD42 Patrol TD05H-18G-6cm 3 Bolt Low Mount Ball Bearing
TD42 Patrol TD05H-18G-6cm 3 Bolt Low Mount Ball Bearing
TD42 Patrol TD05H-18G-6cm 3 Bolt Low Mount Ball Bearing
TD42 Patrol TD05H-18G-6cm 3 Bolt Low Mount Ball Bearing
TD42 Patrol TD05H-18G-6cm 3 Bolt Low Mount Ball Bearing
5
  • SPECIFICATIONS
  • TERMS & CONDITIONS

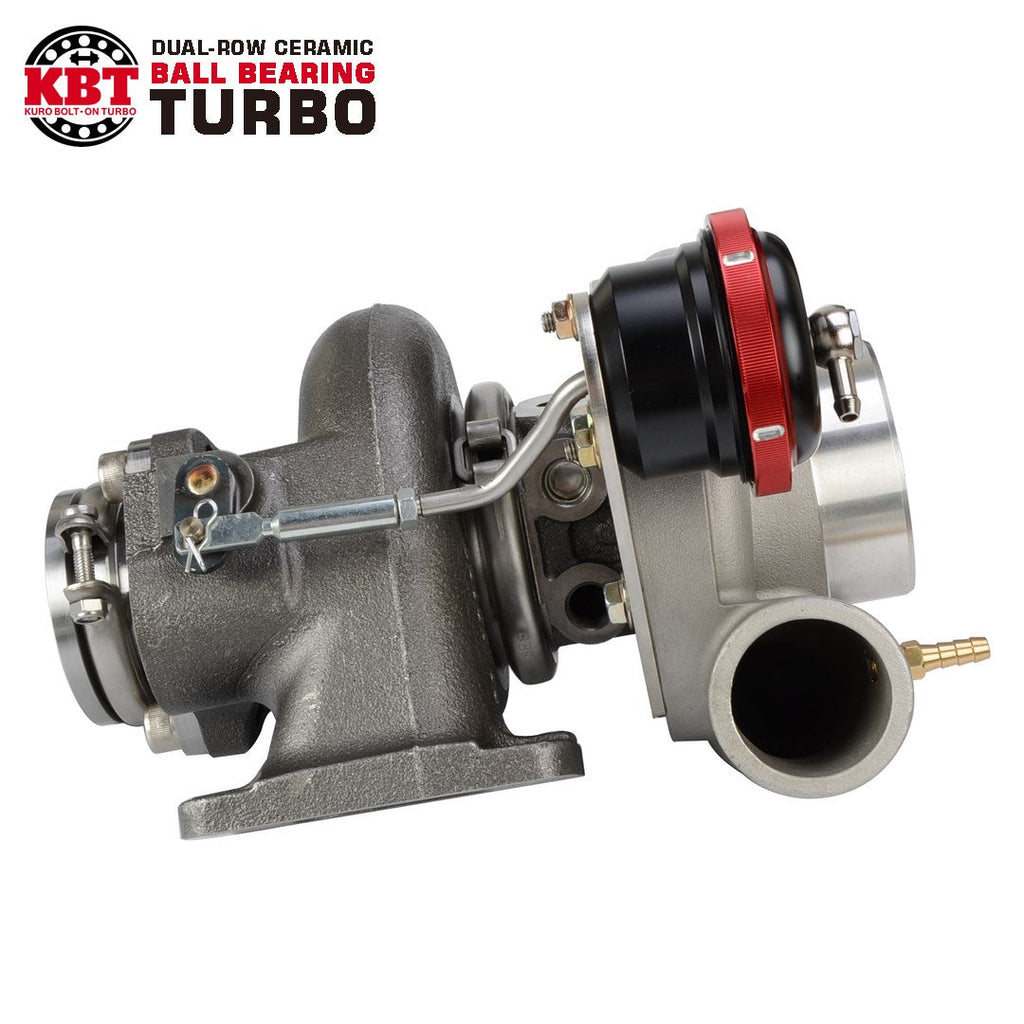

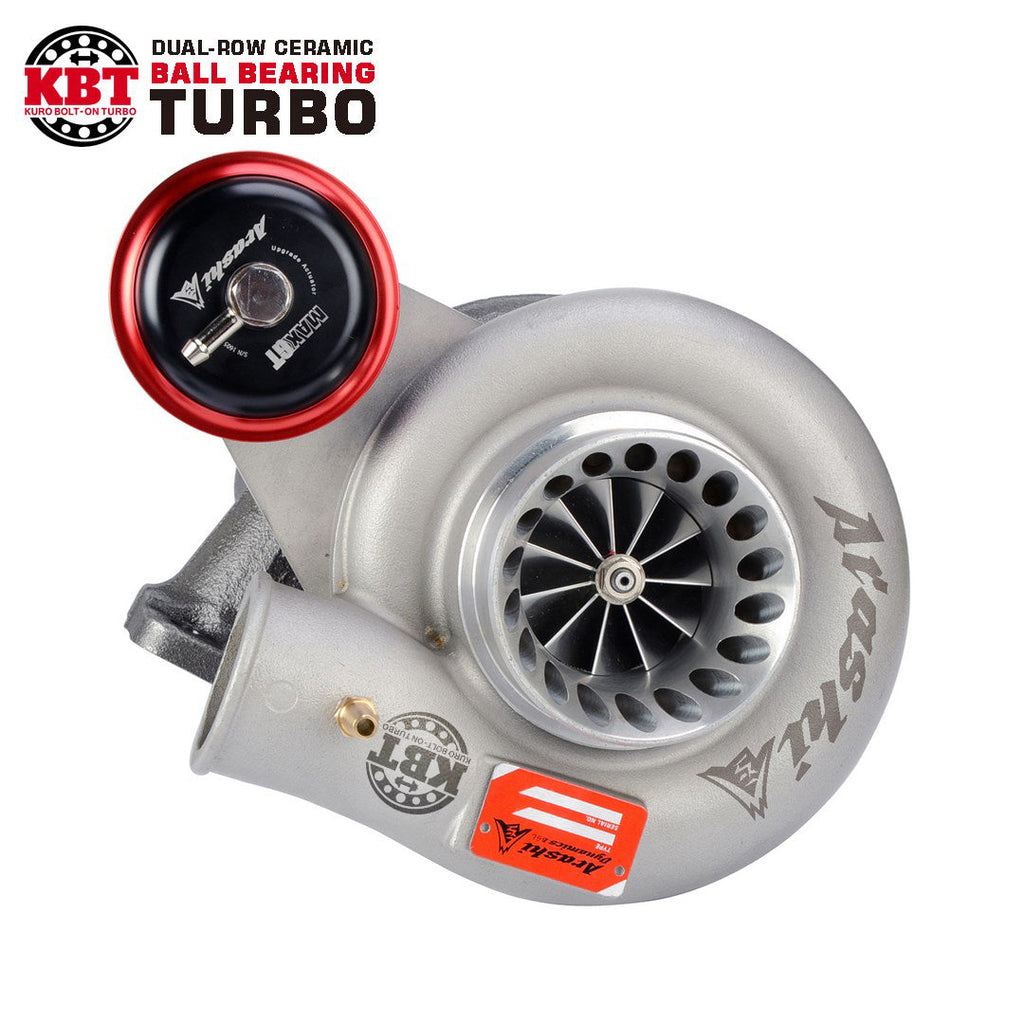

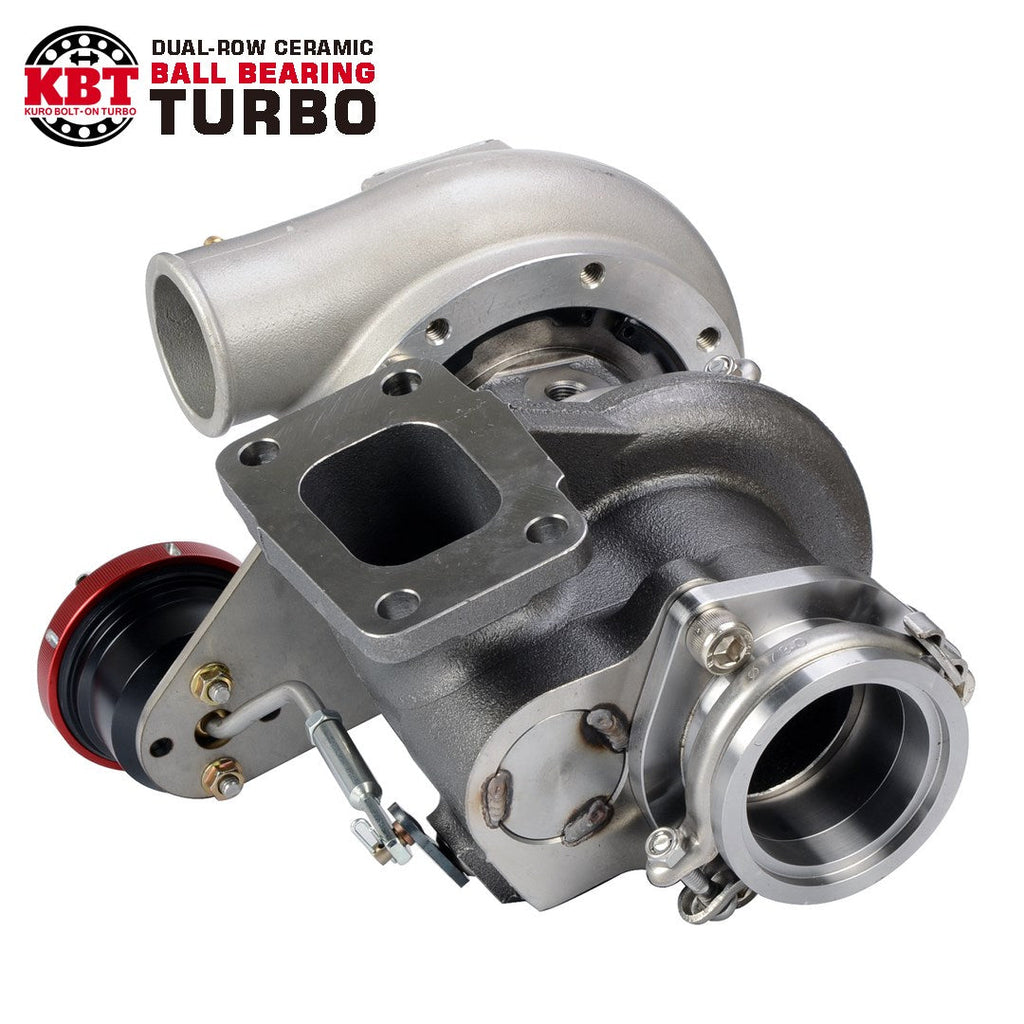

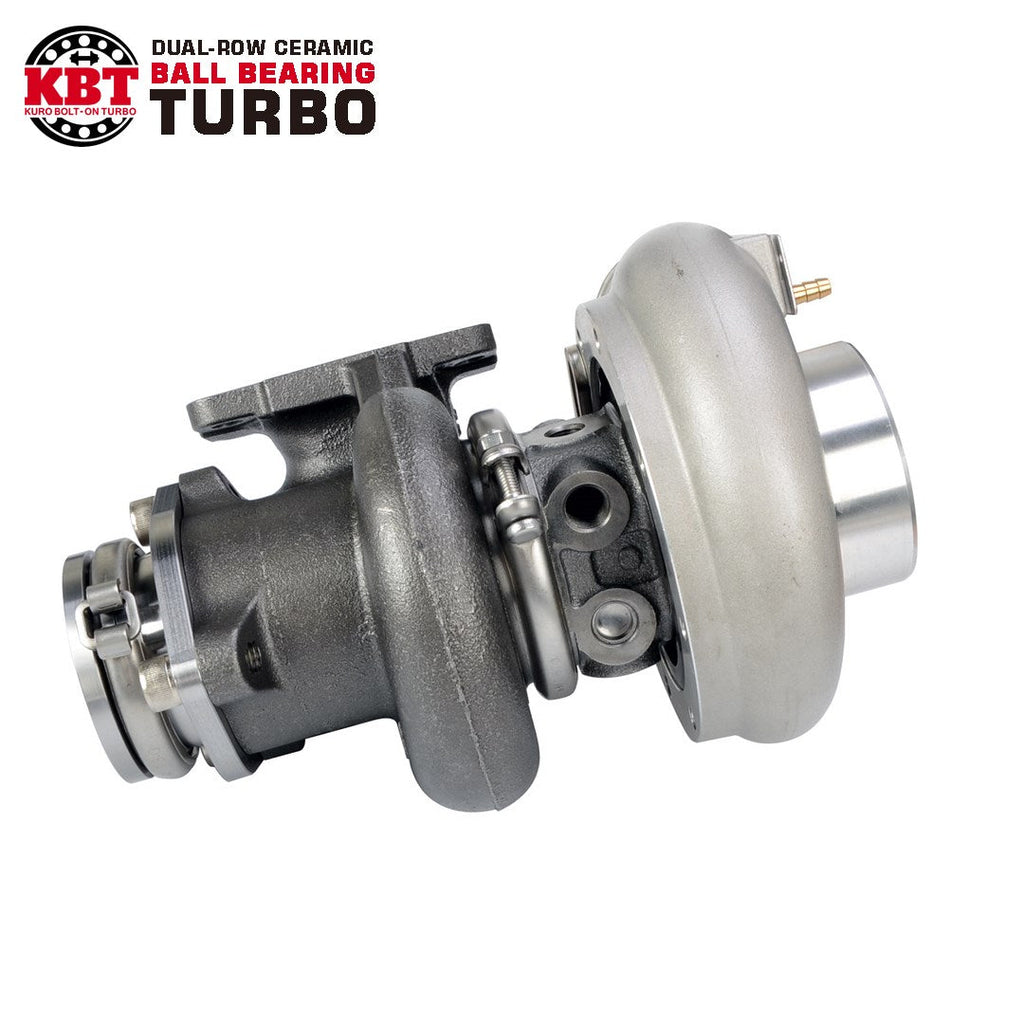

Arashi TD05H-18G-6cm2 Nissan TD42 Patrol Low Mount Ball bearing Billet Wheel Turbocharger

Brand New and Complete CHRAs balanced by VSR Core-Balancing Machine from Turbo Technics.

Application

- Nissan TD42 Patrol with low mount exhaust manifold

- Compressor housing inlet pipe needs to be modified to fit this 3.15” Cover

Arashi Item No.

NI-085650-01BB

Replacement For.

-

Turbine Wheel

TD05H

Turbine Diameter

49.2/55.8 mm (9 Blades)

Turbine Housing

6cm^2 / 0.41 A/R / 3 Bolt

Compressor Housing

Inlet Anti-surge 3.15" / 80mm

Outlet 2" / 50.8mm

Compressor Wheel

18G (Billet)

Compressor Diameter

50.3/68 mm (6+6 Blades) We also offer 11 blades. Please let us know if you need to change.

Compressor CFM

-

Cooling

Water & Oil Cooled (Water cooling must be used for ball bearing type)

Bearing

Dual-row ceramic ball bearing

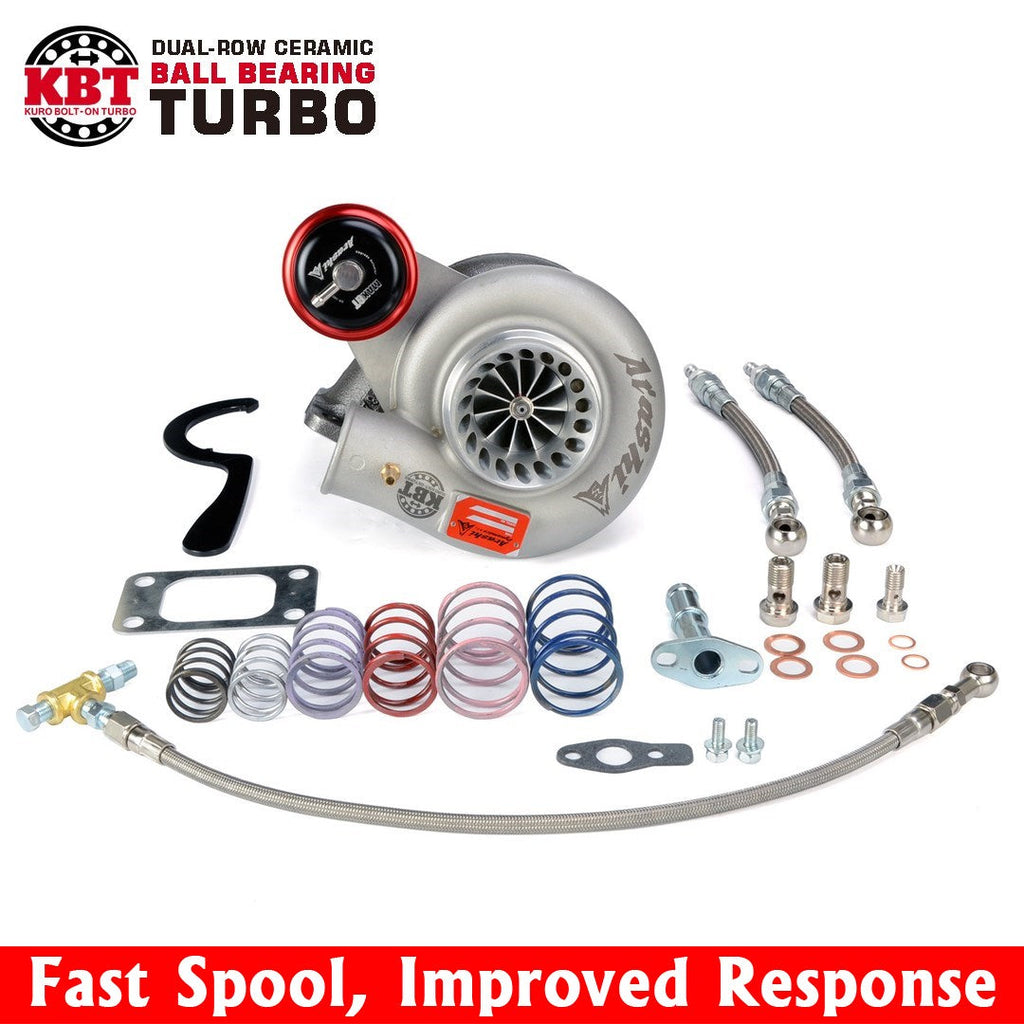

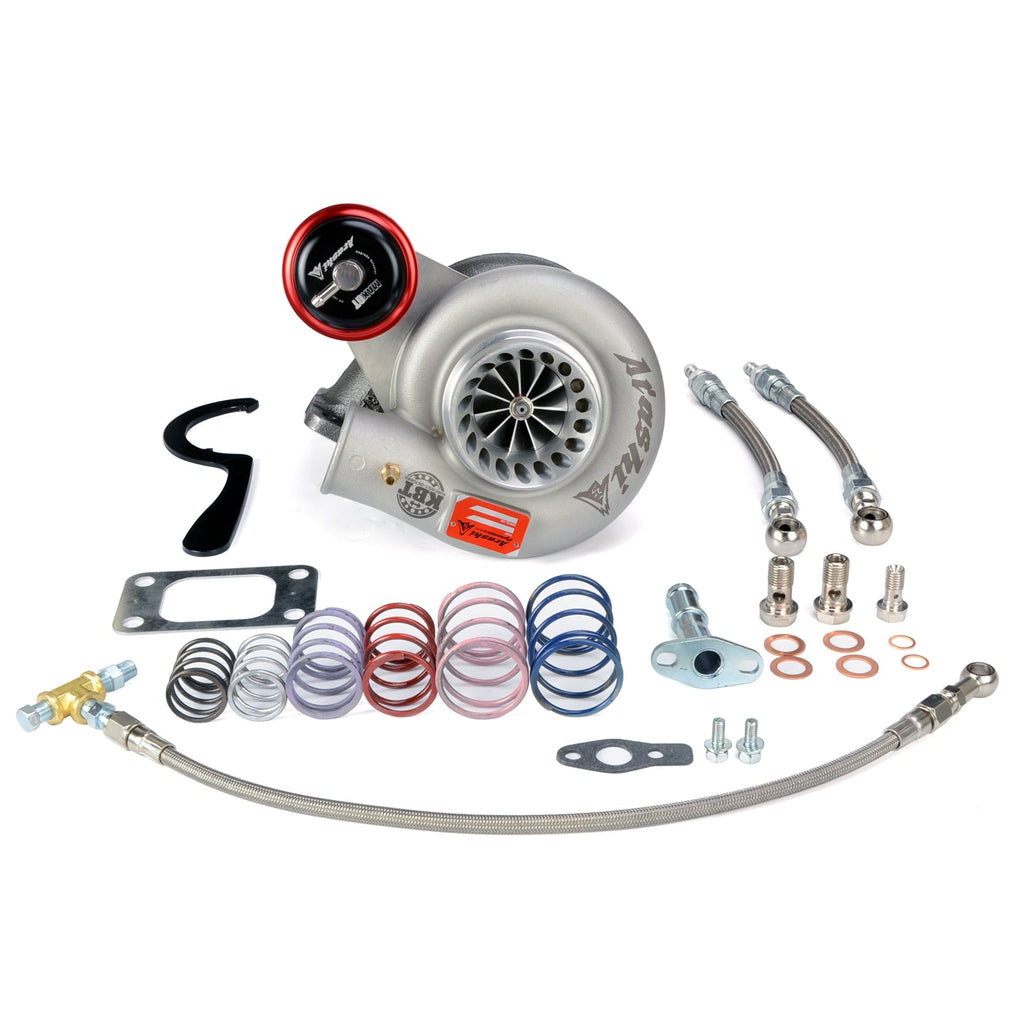

Package Included

Gaskets and Install Kit

Flange

T3

Actuator

1.1 bar spring pre-installed on adjustable actuator.(18 ways for application)

 *Contact us For any inquiries or special requests such as larger amount ordering
