Rebuild kit

$63.00$53.55
Turbo Rebuild Kit Garrett VNT GT1544 ~ GT2560
Turbo Rebuild Kit Garrett VNT GT1544 ~ GT2560
8
  • SPECIFICATIONS
  • TERMS & CONDITIONS

Turbo Rebuild Repair Kit Garrett VNT GT1544 ~ GT2560 on AUDI A3 A4 A6 A8 1.9 2.7 TDI



Application:

●  Garrett VNT GT1544 – GT2560 Turbo
( VNT GT15 / GT17 GT18 / GT20 / GT22 / GT25 )
VNT15,GT15,GT1541,GT1544,GT1549,GT1752S,
GT1852,GT1856,GT20C,GT2052,GT2056S,GT2252S,
GT2256V,GT2259,VNT25,GT2359 Turbo

●  98~99 SAAB 900 GT1549S Turbo (D223,X22DEH Engine)

● 02~ SAAB 9-3 GT1752 Turbo (B205E engine)

● 99~ SAAB 9-3 TiD 2.2L (D223, X22DTH, Y22DTR, Engine)

● 97~ SAAB 9-5 GT1752, GT2082ELS, GT1549, GT1849V, GT2259V (B205E, B207L, B308E, Y22DTR, 6DE1 engine)

● Garrett VNT GT1544 – GT2560 Turbo on Punto / Brava / Bravo / Marea / Croma / Doblo etc

● Garrett VNT GT1544 – GT2560 Turbo on ZX / C3 / C4/ Xantia / C5 / C8 / Xsara / XM...etc

● Garrett VNT GT1544 – GT2560 Turbo on ALFA ROMEO 145 146 147 156 159 166 JTD / GT JTD / Brea JTDM

● Garrett VNT GT1544 – GT2560 Turbo on AUDI A3 A4 A6 A8 1.9 2.7 TDI 1997~2004

● Garrett VNT GT1544 – GT2560 Turbo on  BMW 120d/320d/330d/520d/525d/530d/730d/740d twin turbo/X3/X5

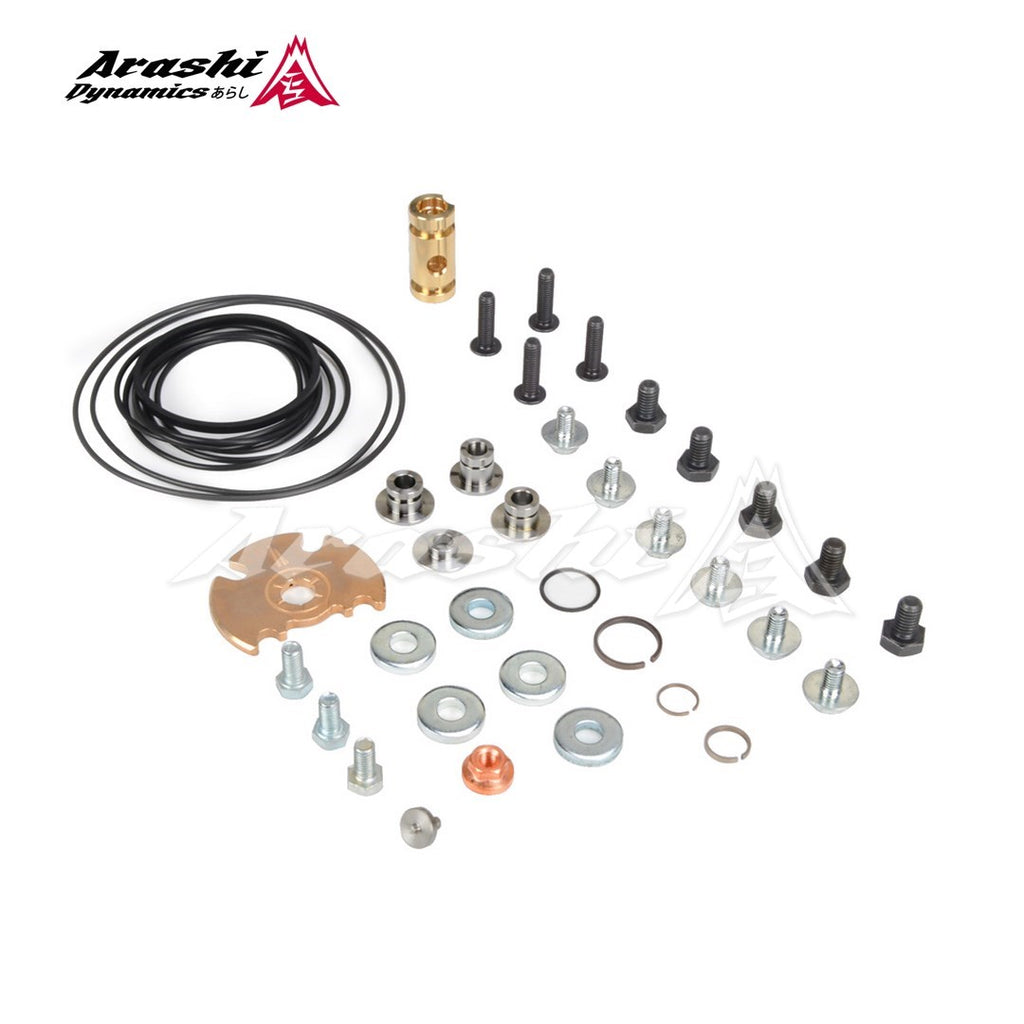

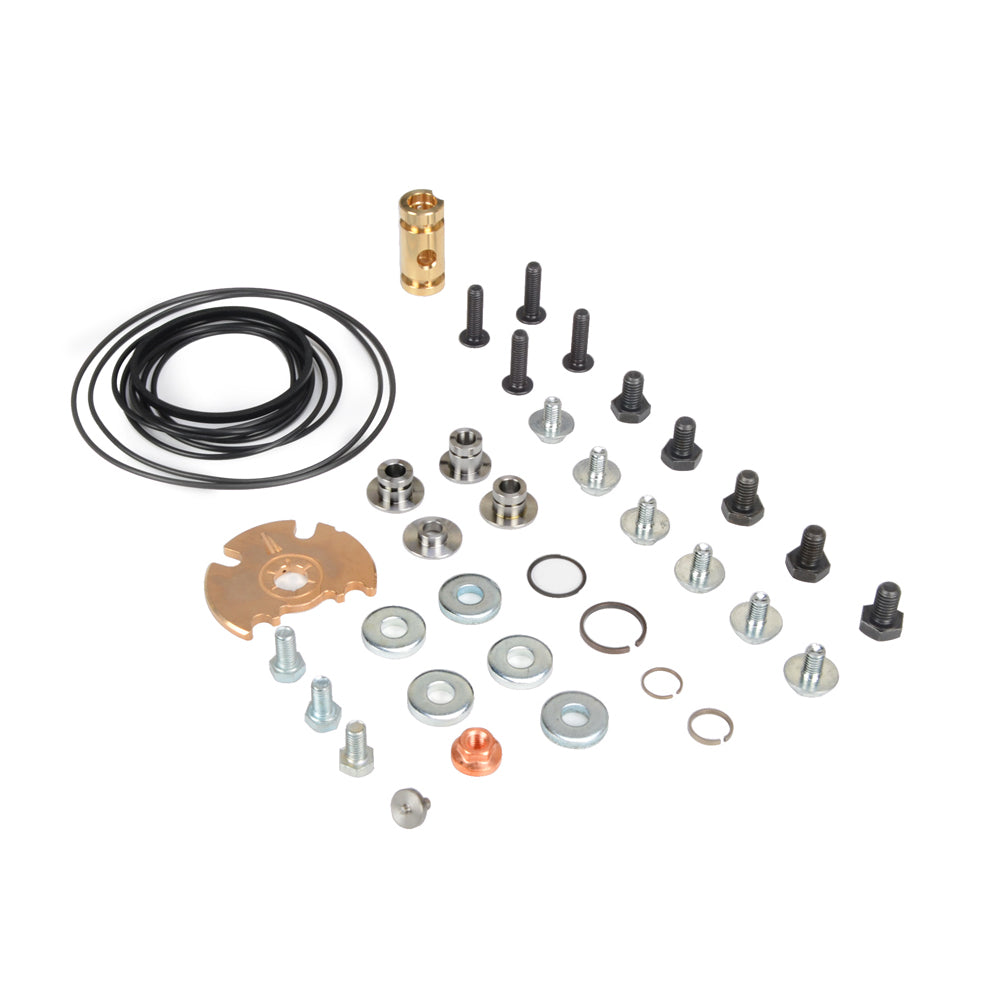

Package Included:

● Journal Bearing*1
● Spiral snap ring(Brg. retainer)*1
● O-Ring insert (Square)*1
● O-Ring Brg Hsg to CC (82mm)*1
● O-Ring  Brg Hsg to CC (88mm)*1
● O-Ring Brg Hsg to CC (95mm)*1
● O-Ring Brg Hsg to CC (108mm)*1
● O-Ring Brg Hsg to CC (114mm)*1
● Piston Ring (Comp. 9.3mm)*1
● Piston Ring (Comp. 10mm)*1

● Piston Ring (Turbine)*1
● Thrust Flinger (Flat back 10-pad 9.3mm P/Ring)*1
● Thrust Flinger (S/back EBD10-pad 9.3mm P/Ring)*1
● Thrust Flinger (10-pad 10mm P/Ring)*1
● Thrust Collar (10-pad)*1
● Anti rotation pin (Journal Brg)*1
● Thrust Bearing (For GT15~25 application)*1
●  Shaft Nut (LHT)*1
●  Bolt (S/plate to C/Cover)*4
●  Bolt (Turbine Housing)*5
●  Locking screw (S/Plate to Brg Hsg)*4
● Clamp Washer (Turbine Hsg)*5
